GIGABYTE 880GMA-UD2H AMD 880G Motherboard Review
| Manufacturer: | Gigabyte |
| Product: | GIGABYTE 880GMA-UD2H |
| Date: | Tue, Aug 17, 2010 - 12:00 AM |
| Written By: | Dan Stoltz - |
| Share: |
USB3 Testing

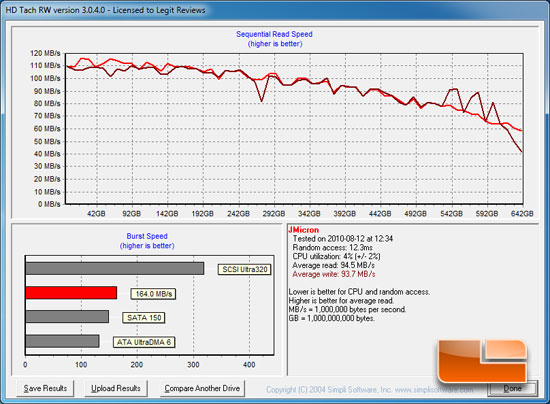

HD Tach is a low level hardware benchmark for random access read/write storage devices such as hard drives, removable drives (ZIP/JAZZ), flash devices, and RAID arrays. HD Tach uses custom device drivers and other low level Windows interfaces to bypass as many layers of software as possible and get as close to the physical performance of the device possible.
Testing of the USB3 was done using the SUNBEAMTECH Airbox USB3.0 External Hard Drive Enclosure. The hard drive used was a Western Digital 640Gb Black Edition Hard drive.

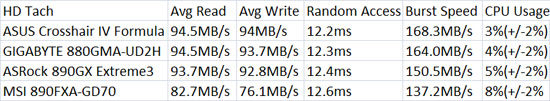

Benchmark Results: The GIGABYTE 880GMA-UD2H was just slightly slower than the ASUS Crosshair IV Formula.

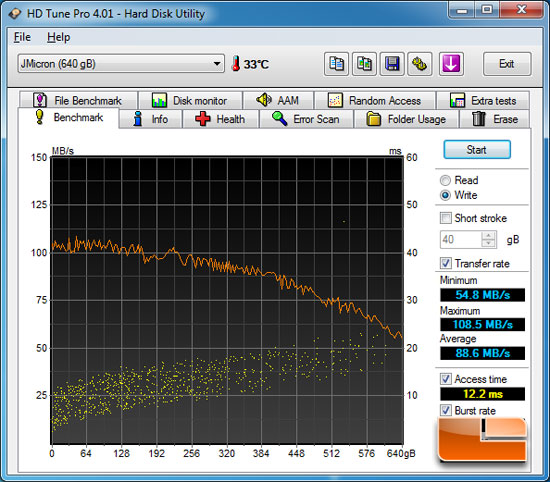

HD Tune Pro 4.01 is an extended version of HD Tune which includes many new features such as write benchmark, secure erasing, AAM setting, folder usage view, disk monitor, command line parameters and file benchmark.
Testing of the USB3 was done using the SUNBEAMTECH Airbox USB3.0 External Hard Drive Enclosure. The hard drive used was a Western Digital 640Gb Black Edition Hard drive.

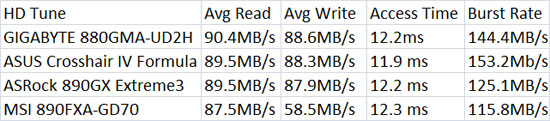

Benchmark Results: HD Tune showed the GIGABYTE 880GMA-UD2H slightly faster than the ASUS Crosshair IV Formula.
Next Page - Network Throughput
