System Power Consumption
Since power consumption is a big deal these days, we ran some simple power consumption tests on our test beds. The systems ran with the power supplies, case fans, video cards and hard drives. To measure idle usage, we ran the system at idle for one hour on the desktop with no screen saver and took the measurement. For load measurements, Prime95's in-place large FFT's was run on all cores to make sure each and every processor was at 100% load for maximum power consumption and heat. We also ran Furmark 1.8 at 1280x1024 to put a full load on the graphics card. All systems were tested using identical hardware.

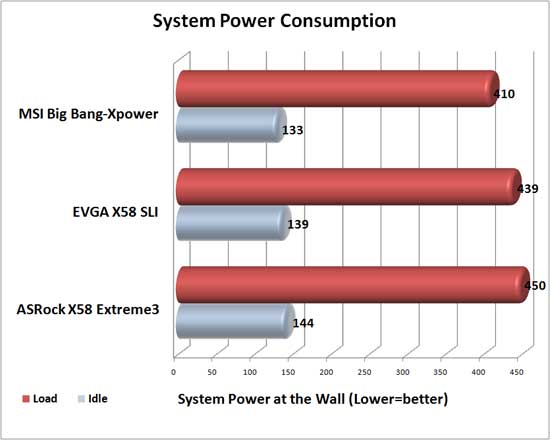

The MSI Big Bang XPower had slightly lower power consumption while sitting on the Desktop with nothing running. Once we started to stress the components we began to see the benefits of Hi-c Caps. There was a difference of 40 Watts between the ASRock X58 Extreme3 and the MSI Big Bang XPower!
