Futuremark 3DMark 11 Performance Testing

3DMark 11 is the latest version of the world’s most popular benchmark for measuring the 3D graphics performance of gaming PCs. 3DMark 11 uses a native DirectX 11 engine designed to make extensive use of all the new features in DirectX 11, including tessellation, compute shaders and multi-threading.

3Dmark11 Testing was performed while using the performance preset, with the AMD Radeon 6970 video card(s) Control Panel set to default settings.

3DMark 11 with 6970 Testing

Reminder: on these next few pages, I will be showing the performance levels of these few gaming benchmarks while using a single 6970 video card, and as well as the onboard GPU of the Trinity and Llano based APUs. The resolution will remain at a 1280 x 720 resolution for a better comparison on how the tested platforms compare to one another.

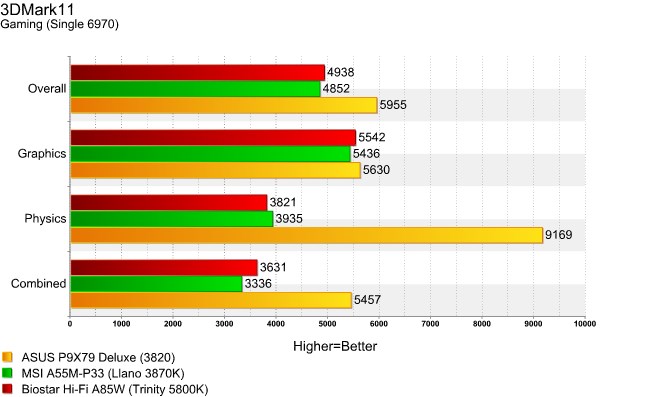

Hi-Fi A85W 3DMark11 Single 6970

Granted the two tested APUs, Trinity 5800K, and the Llano 3870K, do not stand a chance against the mighty Core i7 3820 CPU. I am going to be more concerned with the Graphics (GPU) testing portion of 3DMark11. And looking at just the Graphics (GPU) testing we can get an idea that the CPU/APU does influence the single 6970 video card but it is not a large amount of influencing as all tested platforms were within 100 or so points of each other.

3DMark11 APU testing

Hi-Fi A85W 3DMark11 APU

Since the Core i7 3820 does not have a GPU built into it I left this portion of testing out with this CPU. This is only an APU to APU comparison. The newer Trinity APU while being strapped to the Biostar Hi-Fi A85W motherboard outperformed the Llano based MSI platform in all but the Physics testing, which got me scratching my head a little on that portion of testing.
