Inside The Samsung SSD 850 EVO & 850 PRO

Opening up the Samsung SSD 850 PRO and SSD 850 EVO require a hard to find pentalobe screwdriver and you’ll need to cut or remove the label in order to access two of the three screws that hold the cover down. Removing the cover defaces the label and voids your warranty, so we happily used a knife to cut some holes in the labels and took out the tiny screws for you to take a look inside.

Samsung SSD 850 Inside

Inside both the 850 EVO and 850 PRO appear to be using the same exact PCB design with four Samsung 3D V-NAND packages located on each side of the green PCB.

Samsung 2TB SSD

Which drive was the 850 PRO? Flipping the two drives over we see the identical Samsung MHX controllers, 2GB of LPDDR2 memory for caching purposes and the other four Samsung 3D V-NAND packages. Samsung designed the 850 PRO and 850 EVO to have 1MB of cache per GB of storage capacity.

samsung mhx controller

Here is a closer look at the Samsung MHX controller that is used on both drives. The markings on the both packages read S4LP052X01-8030. Samsung had to use the new MHX controller as the previous MEX controller could only support of to 1TB of NAND Flash. Samsung went back to the drawing board and came up with the MHX controller that obviously supports 2TB of NAND Flash and does so while achieving the same performance as the existing 1TB models.

K9DMGB8S7C

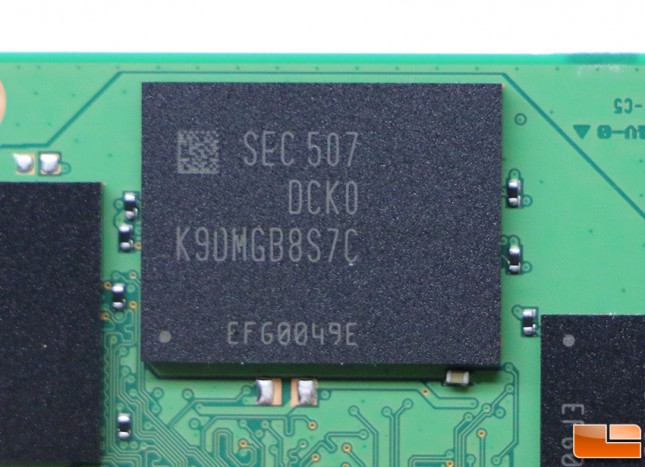

The Samsung SSD 850 EVO uses Samsung 3D V-NAND flash memory with a product number showing K9DMGB8S7C. K9UMGB8S7A

The Samsung SSD 850 PRO uses Samsung 3D V-NAND flash memory with a product number showing K9UMGB8S7A.

Now that we know what is inside we can move along and start benchmarking these two drives!
