Intel Optane Memory Tested As Boot Drive, Secondary and RAID 0

Jump To:

CrystalDiskMark 5.2.0 x64

CrystalDiskMark is a small benchmark utility for drives and enables rapid measurement of sequential and random read/write speeds. Note that CDM only supports Native Command Queuing (NCQ) with a queue depth of 32 (as noted) and shows the highest score of five runs.

Intel Optane Memory 32GB – Boot Drive:

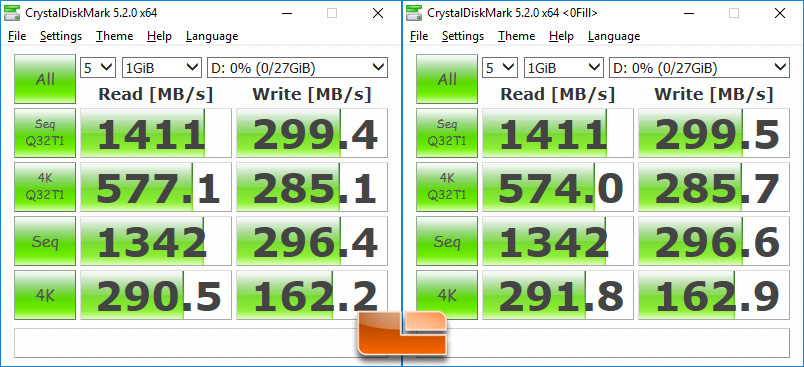

Intel Optane Memory 32GB – Secondary:

Intel Optane Memory 32GB – Secondary RAID 0:

Benchmark Results: The Intel Optane Memory 32GB M.2 drive reached 1,411MB/s read and 300 MB/s write in the standard sequential write test and Random 4K performance was 290 MB/s read and 162 MB/s write as a secondary drive. The 4K performance dropped with the OS installed on the drive, but it wasn’t that bad of a performance hit. In RAID 0 we were hitting 2,824 MB/s read and 585 MB/s write, but saw no real performance improvement at 4K unless you zero in on the 4K Q32T1 write test result as that nearly doubled.

Let’s look at some other benchmarks!

Jump To:
  • forza1sra

    If I have a nvme drive that I boot from can I still use the intel optane to accelerate my HDD since I have a spare m.2 slot?

  • vcadsfv

    In the past there was special subpage where you show how drive behave after some seconds-minuts, why today there are no such a data? This was the main reason o watch your ssd review to check if the drive slow 90% after 15seconds. Now your test are simply boring 🙁

  • Carlos Danger

    How were you able to test using an X99 system, when you even said in your original review, “Intel Optane Memory requires an Intel 200-series chipset motherboard with an open M.2 slot that supports this new feature.”

    • ir0nw0lf

      Probably requires a 2xx chipset for the caching functionality but can work as a normal drive on other chipsets?

    • ProBit Support

      In this benchmark set they were not using the drive as “Optane Memory”, they were just using it like a regular M.2 SSD for direct read/write access.
