Samsung SSD 980 1TB NVMe SSD Review

By Nathan Kirsch

SSD Temperatures During Testing

When it comes to SSD temperature testing we figured out that this is a really tricky thing to measure and that is why most review sites don’t show temperature results. At first we were going to use the minimum and maximum temperatures reported by S.M.A.R.T. and call it a day. That looked good, but while looking closer at the data we noticed that some of the drives with the highest peak value actually averaged out to be much cooler over our entire test suite that takes over three hours per pass to complete. For example, the Intel Optane 905P 960GB drive has the second lowest maximum temperature of all the drives that we have tested, but it also happens to be tied as having the highest average temperature. Seeing high temperatures on a drive might persuade someone not to buy that particular model, so the average temperature result seems to be very important result to include.

New 2020 SSD Test System

All temperature testing was done in a Corsair iCUE 465X RGB case ($129.99 shipped) with an extra Corsair LL Series LL120 RGB fan added to the back of the case to help as an exhaust fan. We then set the fan speed in the UEFI of the ASUS TUF Gaming X570-Plus (Wi-Fi) to run at 50% fan speed.

Samsung SSD 980 Installed

The drive being tested was then screwed down in the primary M.2 slot that is located between the CPU socket and the primary PCIe 4.0 x16 slot that holds the AMD Radeon RX 5600 XT 6GB graphics card. The tempered glass side panel was then placed back on the case before our test suite was run. Ambient room temperature at the time of testing was 21C or right around 70F.

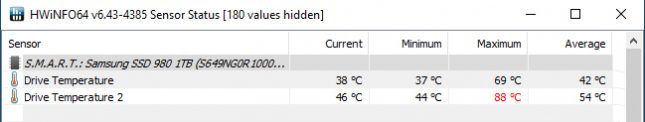

Using the S.M.A.R.T. temperature sensor we found the Samsung SSD 980 1TB drive had a minimum temperature 0f 37C, a maximum temperature of 69C and an average of 42C inside our test system. Those readings were for the first sensor. The second sensor has a minimum temperature of 44C, an average temperature of 54C and a maximum temperature of 88C.

The warning temperature threshold on this drive is 82C and the critical temperature threshold is 85C. Our temperatures never crossed these thresholds, so ‘Drive Temperature’ must be what Samsung is using to determine when the drive overheats.
