Samsung SSD 980 Goes PCIe 3.0 and DRAM-less

The Samsung 980 PRO series of PCIe 4.0 NVMe SSDs were introduced in September 2020 and can reach speeds of nearly 7 GB/s read and 5 GB/s write. That series is most impressive, but they are not exactly affordable for the masses and not everyone needs PCIe 4.0. Enter the Samsung SSD 980 series of PCIe 3.0 NVMe SSDs that come out today with speeds of up to 3.5 GB/s read and 3.0 GB/s write. This series of DRAM-less drives is all about delivering the best performance per dollar for mainstream consumers.

Samsung SSD 980 Banner



Performance and endurance numbers ultimately depend on the Samsung SSD 980 drive capacity, so we’ve included the table below to give you a quick look at the key differences of each of the drives.

Samsung SSD 980 Specifications

Samsung SSD 980 250GB SSD 980 500GB SSD 980 1TB
Pricing $49.99 $69.99 $129.99
Price Per GB $0.20 $0.14 $0.13
Capacity 250GB 500GB 1000GB
Form Factor M.2 2280 M.2 2280 M.2 2280
Interface / Protocol PCIe 3.0 x4 / NVMe 1.4 PCIe 3.0 x4 / NVMe 1.4 PCIe 3.0 x4 / NVMe 1.4
Controller Samsung Pablo Samsung Pablo Samsung Pablo
DRAM None (HMB) None (HMB) None (HMB)
NAND Flash Samsung TLC 128L Samsung TLC 128L Samsung TLC 128L
Sequential Read 2,900 MB/s 3,100 MB/s 3,500 MB/s
Sequential Write 1,300 MB/s 2,600 MB/s 3,000 MB/s
Random Read 230,000 IOPS 400,000 IOPS 500,000 IOPS
Random Write 320,000 IOPS 470,000 IOPS 480,000 IOPS
Endurance (TBW) 150 TBW 300 TBW 600 TBW
Part Number MZ-V8V250BW MZ-V8V500BW MZ-V8V1T0BW
Warranty 5-Years 5-Years 5-Years



Pricing on the Samsung SSD 980 series is $129.99 for 1TB, $69.99 for 500GB, and $49.99 for 250GB. These prices are competitive with most PCIe Gen 3.0 drives and far under that of the PCIe Gen 4.0 drives on the market today.

Samsung SSD 980 1TB Retail Box

Samsung sent over the new 1TB version of the SSD 980 for us to check out our AMD Ryzen X570 platform!

Samsung SSD 980 Pro 1TB PCIe Gen3 NVMe SSD

After opening up the retail box you’ll discover the drive and a paper installation guide.

Samsung SSD 980 1TB Front

On the front label you’ll see that this drive has a PSID number and we have confirmed that this drive has full AES 256-bit hardware-level encryption. It is TCG/OPAL V2.0 certified!

Samsung SSD 980 1TB Back Single-Sided SSD

On the back of this single-sided M.2 2280 drive you’ll find just the label and no major components.

Samsung SSD 980 1TB Copper Label

The Samsung SSD 980 features Dynamic Thermal Guard (DTG) technology to reduce thermal throttling. On the back of the drive there is a label that has a thin piece of copper in it to help dissipate heat. You can see the copper heat spreader in the label better at an angle like in the image above. The label is placed behind the NAND Flash chip and not directly behind the SSD controller.

Samsung SSD 980 1TB with no label

Want to see what the drive looks like under the label? We removed out label, so you can take a look at the layout of the Samsung SSD 980 1TB drive.

Samsung Pablo Controller SSD 980

Here is a closer look at the Samsung Pablo Controller. Samsung was not willing to discuss cores, channels or clocks. It we had to take a guess it likely has three ARM Cortex R5 cores and a 4-channel design. The controller is topped with a nickel coating that helps lower the SSD controller temperature by about 5C on average during active use.

Samsung SSD 980 HMB Diagram

Samsung did confirm to Legit Reviews that this is the same controller that they are using on the Samsung Portable SSD T7 series that was introduced in May 2020. That drive also happens to be DRAM-less. Without a dedicated DRAM Cache the FTL tables will be written to the system memory of the host PC using the Host Memory Buffer (HMB) method. HMB helps lessen the I/O performance hit of not having dedicated DRAM sitting next to the controller on the SSD and has been around for a number of years. HMB was first introduced with the NVMe 1.2 protocol back in 2014.

Samsung SSD 980 NAND Flash

The only Samsung 128-Layer TLC V-NAND chip on the drive is located on the far end of the drive. With the label removed you can see four lines of text that is hard to make out.

Samsung Magician SSD 980

Samsung has made upgrading an existing system to this model super easy as they have include data migration software. The Samsung Data Migration Software can be downloaded here along with the latest version of Samsung Magician 6. Samsung Magician 6 software helps you monitor and manage your SSD! We downloaded and installed Samsung Magician 6.2.1 to show you how it looks.

Samsung Magician SSD 980 Benchmarks

Samsung Magician has a built-in performance test that does four corner testing. This benchmark shows the NVMe SSD 980 1TB drive reached highs of 3525 MB/s read and 2747 MB/s write for sequential performance and 242,675 IOPS Random Read and 193,115 IOPS Random Write as the boot drive. We test with ~55% data fill on the drive, so these are respectable numbers.

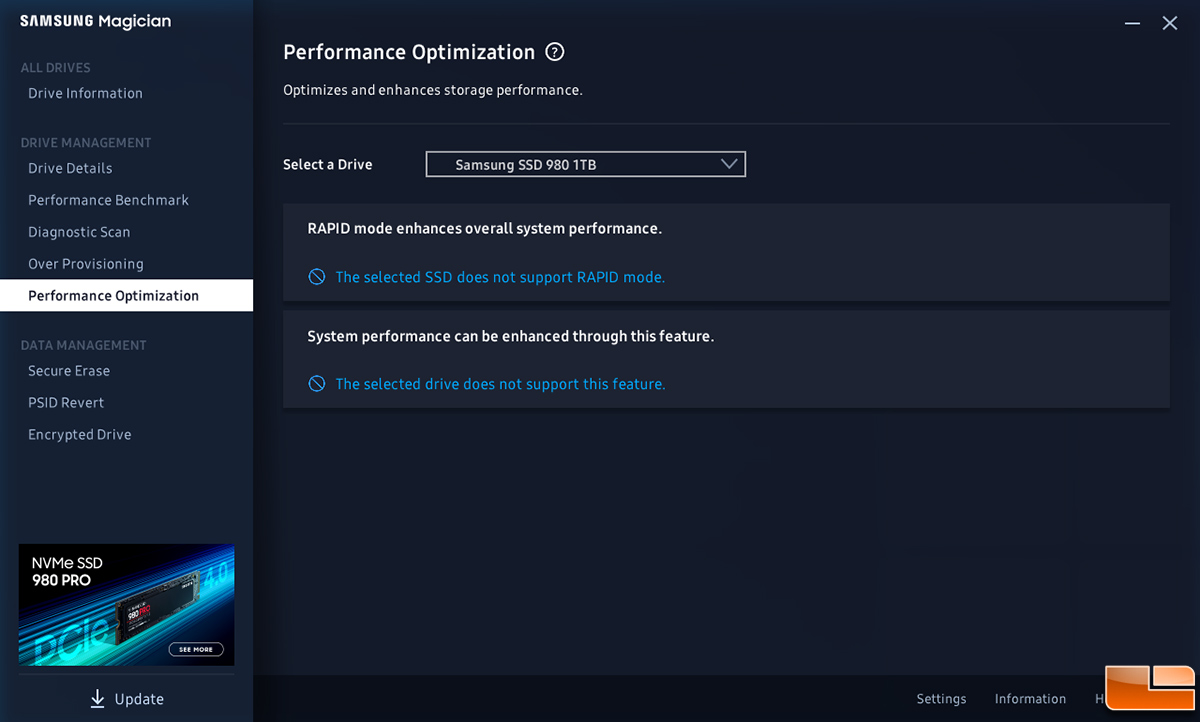

Samsung Magician SSD 980 Performance Optimization

Samsung Magician also allows you to enable over provisioning and performance optimizations like RAPID mode, but all those features were not supported by this drive on this version of Samsung Magician.

Samsung SSD 980 Full Power Mode

Samsung is also introducing the ability to run the SSD 980 series in full power mode for peak performance. Unfortunately, this feature will only be available in Samsung Magician 6.3 and later. Samsung will not have that done until later this month and we were unable to try out this new feature that they are marketing.

Let’s take a look at the test system and then show you how the Samsung SSD 980 1TB did on our usual test suite.
