Along with the move to a new platform, we decided to make a change in one of the benchmarks. There’s a relatively new benchmark called Anvil Storage Utilities that is in beta but close to production. It’s a very powerful tool that measures performance through a variety of tests which can be customized. Since some of the tests more or less duplicate what we get from other benchmarks we use already, we decided to use the IOPS (Input/Output Operations Per Second) testing on 4kb file sizes at a queue depth of 1, 4, 8, 16, 32, 64 and 128. IOPS performance is something SSD makers tout quite a bit but we generally don’t do a lot of IOPS testing because frankly a lot of users can’t relate to IOPS metrics as well and it tends to be more meaningful to the enterprise/server crowd. Still, it is another performance indicator with relevance and while some drives post good MB/s numbers, their IOPS scores aren’t always commensurate which this test will prove out.

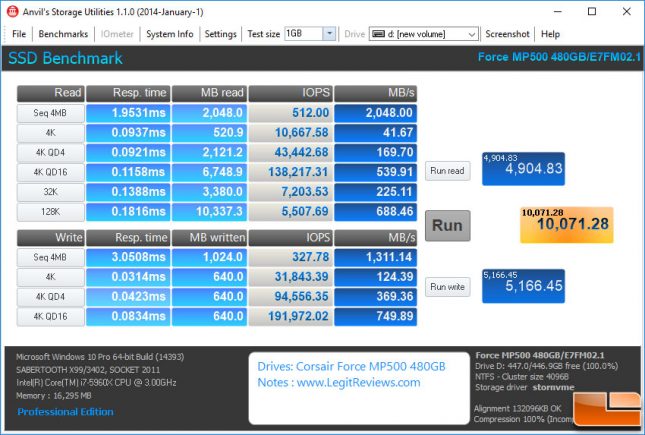

Benchmark Results: The Anvil SSD Benchmark showed that with 100% compression (incompressible data) the Corsair Force MP500 M.2 480GB SSD scored 10,071 points with stock Windows NVMe Driver and Windows write-cache buffer flushing disabled on the drive.
Benchmark Results: With the compression at 46% to help mimic real world applications better we found the overall dropped just a bit down to 10,052 points.
Benchmark Results: We used Anvil to check the 4K Random Read performance and found we we topped out at 245,800 IOPS, which just shy of the drives rated 4K Random Read rating of 250,000 IOPS. To be totally fair Corsair used IOMeter to come up with that result, so we are totally in the ballpark.
Benchmark Results: When it came to 4K Random Write performance, the Corsair Force MP500 480GB drive topped out at 196,900 IOPS at QD64 and that just edged out the 190,200 IOPS on the Patriot Hellfire M.2 480GB drive at the same QD. Not bad and close to the drives rated 210,000 4K Random Write performance rating with IOMeter.
