ASUS Rampage V Extreme Motherboard Review – Intel X99

Intel X99 SuperSpeed USB 3.0 Performance Testing

There are a number of different Super Speed USB 3.0 host controllers out there. In order to know which ones perform the best we run a series of tests that will put the controller through the ringer and see how it comes out on the other side. Each of our motherboards uses a different Super Speed USB 3.0 controller and you can find the below.

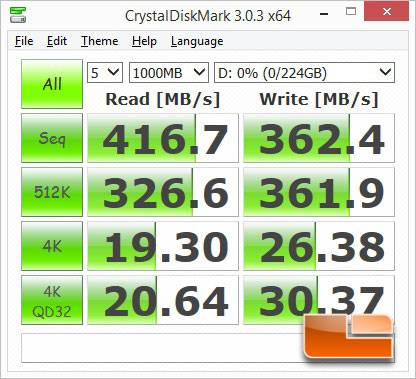

CrystalDiskMark is a small benchmark utility for drives and enables rapid measurement of sequential and random read/write speeds. Note that CDM only supports Native Command Queuing (NCQ) with a queue depth of 32 (as noted) for the last listed benchmark score. This can skew some results in favor of controllers that also do not support NCQ.

Testing of the USB3 was done using the “Thermaltake BlacX 5G Hard Drive Docking Station . The drive used was an Corsair Neutron 240Gb SSD.

Benchmark Results: The ASUS Rampage V Extreme has both the Intel and ASMedia USB Controller on the I/O panel, figure why not test them both. The Intel X99 SuperSpeed was a touch faster then the ASMedia controller with a sequential write of 416.7MB/s over the 413.4MB/s of the ASMedia controller. There is a slightly larger difference in the sequential write speeds, but the Intel SS USB 3.0 was still faster with sequential write of 362.4MB/s vs. 351.8MB/s.

HD Tune Pro 5.00 is an extended version of HD Tune which includes many new features such as write benchmark, secure erasing, AAM setting, folder usage view, disk monitor, command line parameters and file benchmark.

Intel X99 SuperSpeed USB 3.0 HD Tune 5.50 Read Benchmark Results

Intel X99 SuperSpeed USB 3.0 HD Tune 5.50 Write Benchmark Results

Testing of the USB3 was done using the “Thermaltake BlacX 5G Hard Drive Docking Station . The drive used was an Corsair Neutron 240Gb SSD.

Benchmark Results: The ASUS X99-A ASMedia SuperSpeed USB 3.0 Controller was the fastest of the boards that we have tested the SuperSpeed USB 3.0 on. The Average read was 276.9MB/s, the next fastest was the ASUS P9X79-Pro motherboard with an average read of 263.7MB/s. The Average write was also the fastest with an average of 290.3MB/s. The Intel SuperSpeed USB 3.0 controller on the ASUS X99-A was solid with an Average Read of 244.4MB/s and an Average Write of 225.9MB/s, spot on with other Intel X99 motherboards.
