MyDigitalSSD SBX 512GB NVMe SSD Review


AS SSD Benchmark

AS-SSD (2.0.6485.19676) Benchmark:

We have been running the AS-SSD Benchmark app for over some time now and found that it gives a broad result set. The programmer has worked very hard on this software and continues to make updates often so if you use it, show him some love and send him a donation. There are now three tests that are found within the tool and we’ll show the results from all three of them.

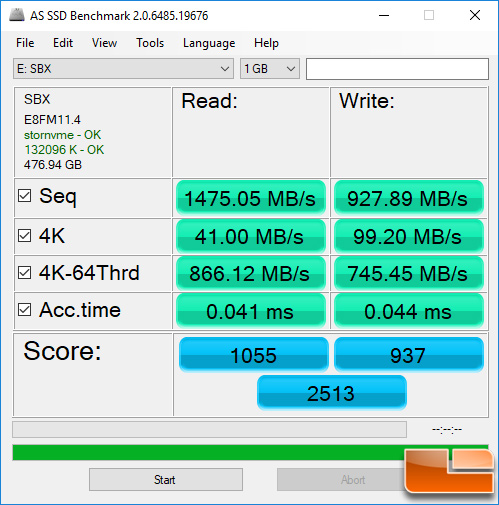

AS SSD – MyDigitalSSD SBX M.2 512GB:

Benchmark Results: On AS SSD, the SBX 512GB drive had an overall score of 2,513 points with sequential read speeds of 1475 MB/s and 927 MB/s write. The 4K random results were at 41 MB/s read and 99.20 MB/s write. The 4K-64Thrd IOPS were at 221,700 IOPS Read and 190,800 IOPS Write.

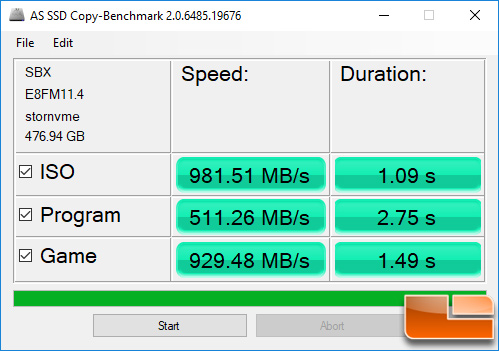

AS SSD Copy – MyDigitalSSD SBX M.2 512GB:

Benchmark Results: The copy benchmark test results were ranging from 511 MB/s in the Program test to 981 MB/s in the ISO benchmark.

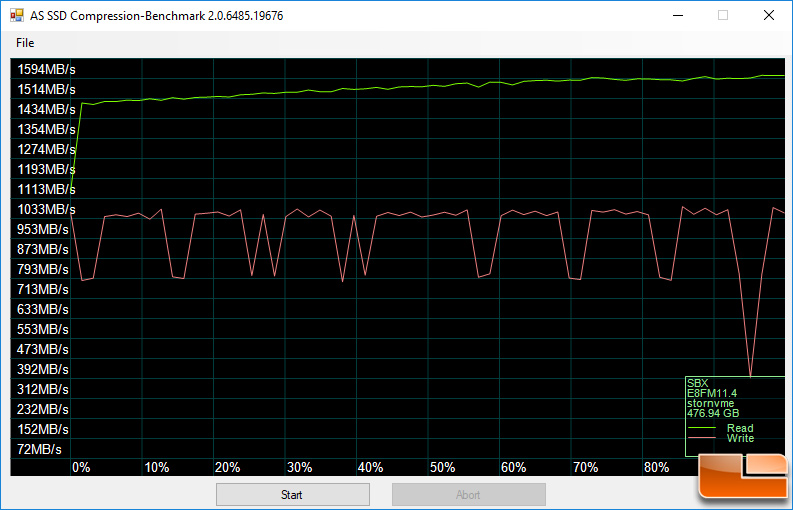

AS SSD Compression – MyDigitalSSD SBX M.2 512GB:

Benchmark Results: For this benchmark chart you would ideally want to see a straight line as you dont want any compression performance loss as the test goes from 0% compressible to 100% compressible data during the benchmark test period. The SBX 512GB drive wasn’t exactly flat on either test, but you have to keep in mind this is a low-cost drive for the entry-level NVMe market.
