The Legit Reviews Test System

Before we look at the numbers, let’s take a brief look at the test system that was used. All testing was done on a fresh install of Windows 8 Enterprise 64-bit and benchmarks were completed on the desktop with no other software programs running. We completely overhauled our test setup for the Intel Core i7-4770K processor launch, so we are starting over from scratch when it comes to testing everything. For this review will be comparing Intel Z77, Intel Z87 and AMD FM2 platforms. These platforms are aimed at mainstream users and all feature integrated graphics, so it will be interesting to see how the systems compare. We understand that there is a significant price difference between some of the processors we will be testing, but the platforms are targeted to the same consumer group.

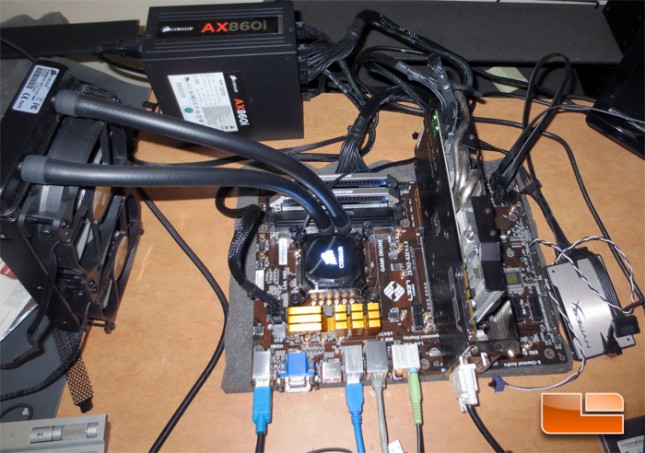

ECS L337 Gaming GANK Drone Z87H3-A3X Test System

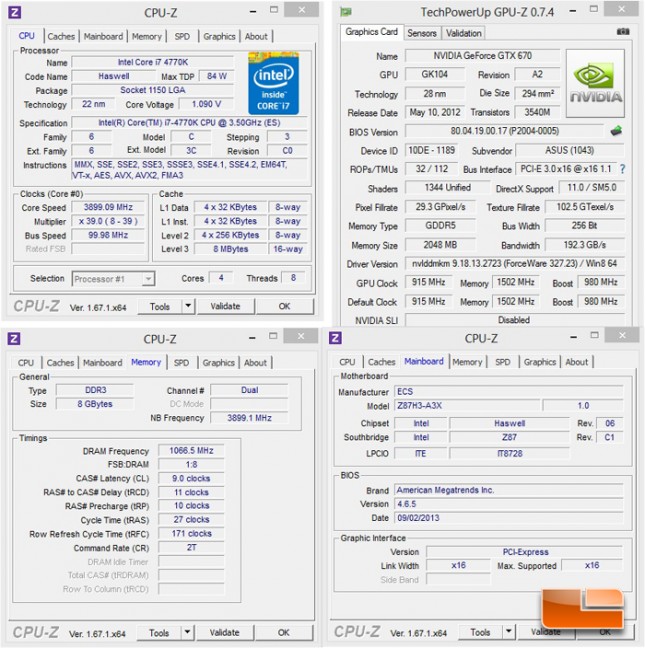

Here is a quick look at the CPU-Z information for our main test system that we’ll be doing the testing on.

ECS GANK Drone Z87H3-A3X System Settings

The Intel Core i7-4770K LGA1150 processor was running on the ECS L337 Gaming GANK Drone Z87H3-A3X and was running the latest BIOS version . The Corsair Dominator Platnium 8GB 2133MHz memory kit was set to XMP 1.3 memory profile settings, which is 1.5v and 9-11-10-27 2T memory timings at 2133MHz. The Corsair Neutron GTX 240GB SSD uses 19nm NAND and was using M310 firmware.

z87-pro-system-settings-2

The Intel HD Graphics 4600 that from the Intel Core i7-4770K

Intel LGA1150 Test Platform

Component

Brand/Model

Live Pricing

Processor

Intel Core i7-4770K

Motherboard

GIGABYTE Z87X-OC Force Click Here

Memory

8GB Donimator 2133MHz Click Here

Video Card

ASUS GeForce GTX670 DirectCU II Click Here

Hard Drive

Corsair Neutron GTX 240GB SSD

Click Here

Cooling

Corsair H100i

Click Here

Keyboard

Corsair K90

Click Here

Mouse

Corsair M95

Click Here

Power Supply

Corsair AX860i

Click Here

Operating System

Windows 8 64-Bit

Click Here
