When it comes to SSD temperature testing we figured out that this is a really tricky thing to measure and that is why most review sites don’t show temperature results. At first we were going to use the minimum and maximum temperatures reported by S.M.A.R.T. and call it a day. That looked good, but while looking closer at the data we noticed that some of the drives with the highest peak value actually averaged out to be much cooler over our entire test suite that takes over three hours per pass to complete. For example, the Intel Optane 905P 960GB drive has the second lowest maximum temperature of all the drives that we have tested, but it also happens to be tied as having the highest average temperature. Seeing high temperatures on a drive might persuade someone not to buy that particular model, so the average temperature result seems to be very important result to include.
All temperature testing was done in a Corsair iCUE 465X RGB case ($129.99 shipped) with an extra Corsair LL Series LL120 RGB fan added to the back of the case to help as an exhaust fan. We then set the fan speed in the UEFI of the ASUS TUF Gaming X570-Plus (Wi-Fi) to run at 50% fan speed.
The drive being tested was then screwed down in the primary M.2 slot that is located between the CPU socket and the primary PCIe 4.0 x16 slot that holds the AMD Radeon RX 5600 XT 6GB graphics card. The tempered glass side panel was then placed back on the case before our test suite was run. Ambient room temperature at the time of testing was 21C or right around 70F.

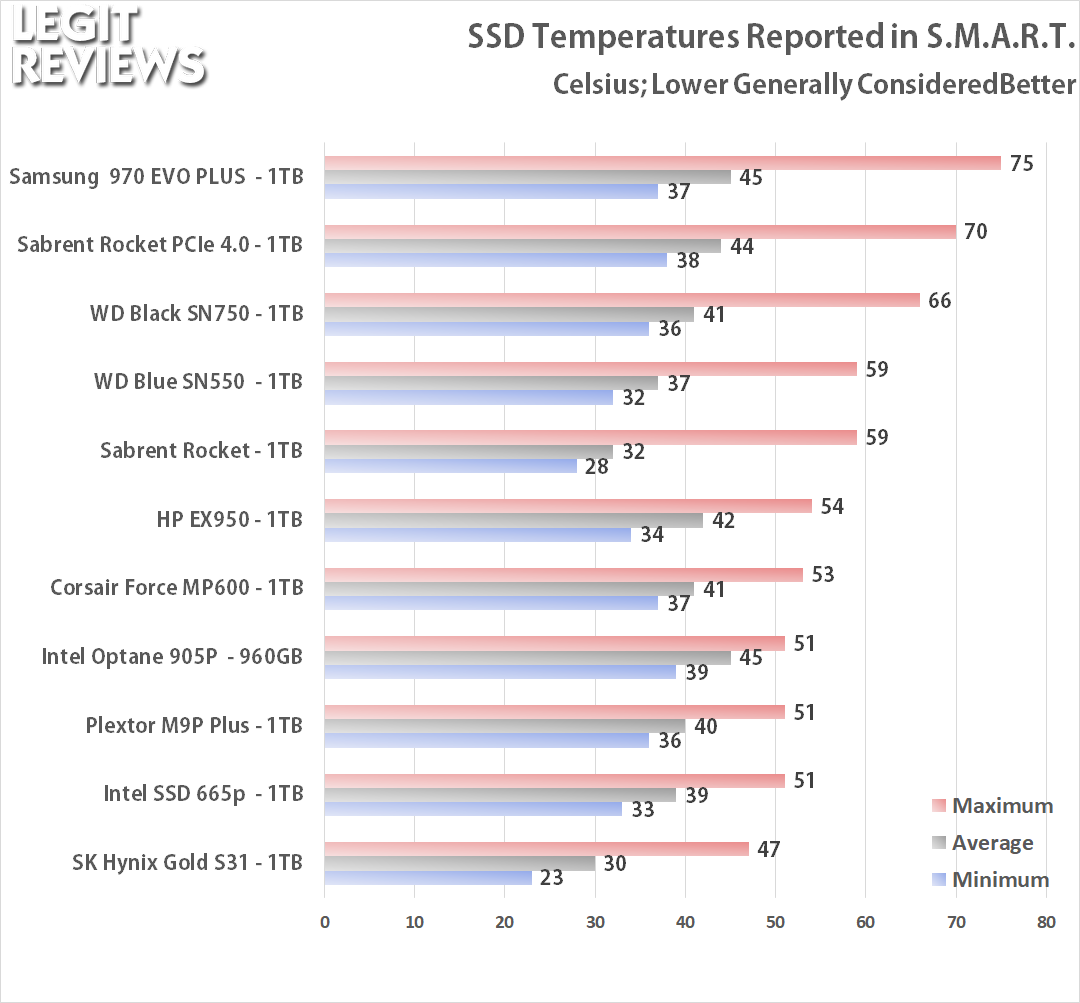

Using the S.M.A.R.T. temperature sensor we found the Sabrent Rocket 4.0 had a minimum temperature 0f 38C, an average of 44C and a maximum of 70C. This drive runs on the hotter side of the 10+ that we have tested in this PC case, but we didn’t experience any throttling during testing. The Corsair MP600 is basically the same drive with a heatspreader and it ran 2C cooler on the minimum, 3C cooler on average and an impressive 17C cooler at the maximum recorded temperature. The good news is that most Phison E16 drives throttle at 83C and both the Sabrent Rocket 4.0 and Corsair MP600 1TB drives are far from that point.
