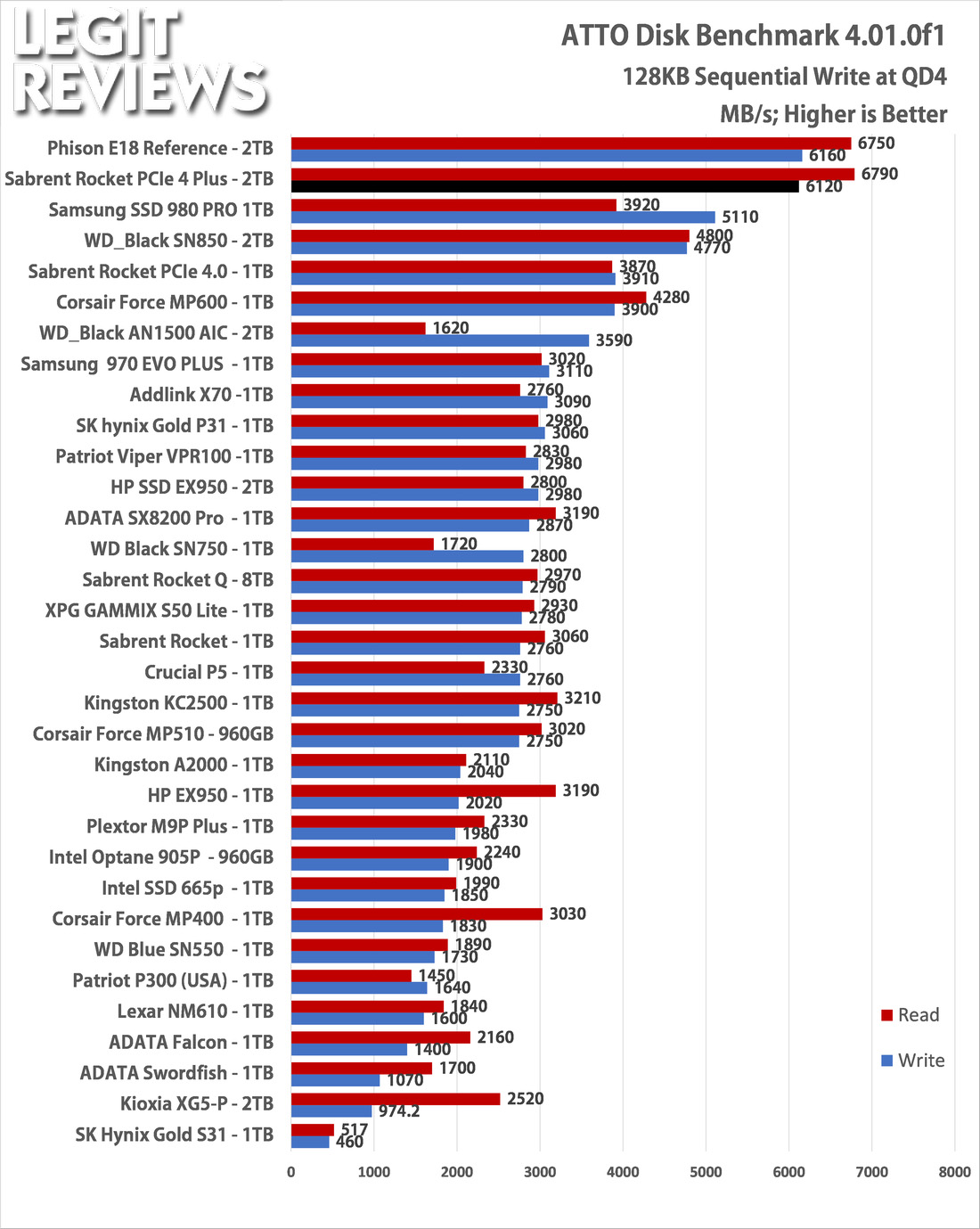

ATTO is one of the oldest drive benchmarks still being used today and is still very relevant in the SSD world. ATTO measures transfers across a specific volume length. It measures raw transfer rates for both reads and writes and places the data into graphs that can be very easily interpreted. The test was run with the default runs of 0.5KB through 64MB transfer sizes with the total length being 256MB.
Benchmark Results: On ATTO Disk Benchmark we found that the Sabrent Rocket 4 PLUS SSD topped out at 6.17 GB/s write and 6.94GB/s read at the standard queue depth of 4. These are amazing speeds and we are finally seeing the true potential of PCIe Gen 4 drives!
CrystalDiskMark is a small benchmark utility for drives and enables rapid measurement of sequential and random read/write speeds. Note that CDM only supports Native Command Queuing (NCQ) with a queue depth of 32 (as noted) and shows the highest score of five runs.

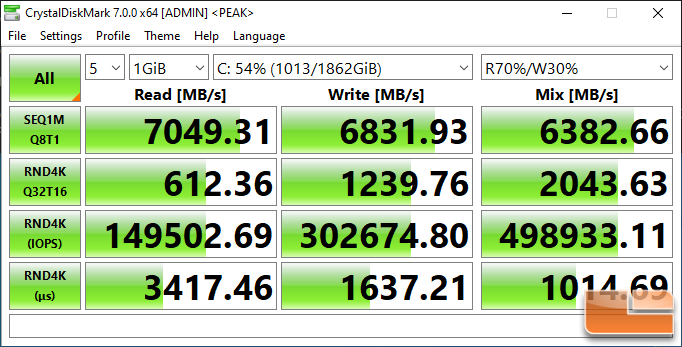

Peak Performance Preset

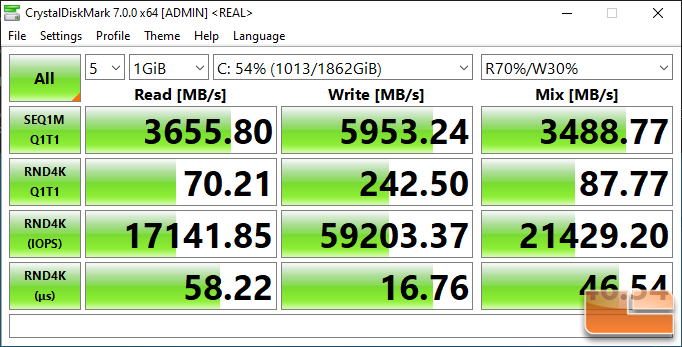

Real Performance Preset
Benchmark Results: The Sabrent Rocket 4 Plus 2TB NVMe SSD came in with scores of 7,049 MB/s read and 6,831 MB/s write on CrystalDiskMark 7! The Random 4K performance at QD1 was 70 MB/s read and 243 MB/s write. Very solid scores for an AMD Ryzen 5 3600X system with no optimizations and a standard install of Windows 10.
Let’s look at some other benchmarks!
