MSI P55-GD85 LGA 1156 Intel Motherboard Review
Test Configuration
To spice things up for this review I decided to overclock the MSI P55-GD85 for the performance benchmarks. Since The highest memory multiplier was DDR3-1600 and I had DDR3-2000C7 sticks I opted for 21×166 which yielded 3.5GHz and DDR3-2000C7. Since my EVGA P55 FTW was on loan to a friend I opted for the Gigabyte P55A-UD6 as a comparison. I set both boards to 21×166, selected the XMP profile on the Corsair Dominator GT 2000C7 sticks, set the vcore to 1.35v, vtt to 1.30v, vdimm to 1.65v, and set the fan to 100% in BIOS. Windows 7 Professional x64 with ATI’s 10.1 drivers with default visual quality settings were used along with the latest versions of the selected benchmarks.

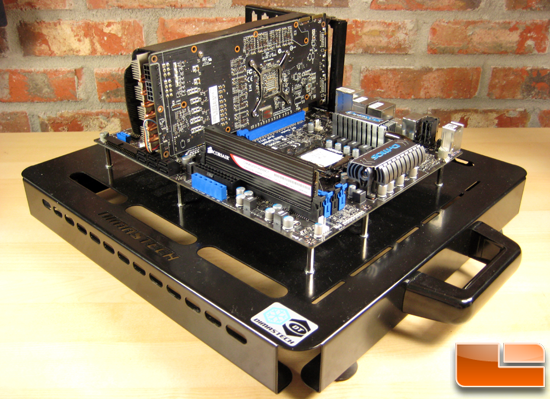

| Intel Test Platform | |||||
|---|---|---|---|---|---|
|
Component |
Brand/Model |
Live Pricing |
|||
|
Processor |
Intel Core i7 860 |
||||
|
Motherboard |
MSI P55-GD85
|
||||
|
Memory |
Corsair Dominator GT DDR3-2000 C7 2x2GB
|
||||
|
Video Card |
Asus Matrix HD 4890 |
||||
|
Hard Drive |
Seagate 7200.10 320GB |
||||
|
Case |
Dimastech Bench Table Hard V2 |
||||
|
Cooling |
Cooler Master Hyper 212 Plus |
||||
|
Power Supply |
Corsair HX1000 |
||||
|
Operating System |
Windows Vista Ultimate |
||||
