Micron 5100 MAX 1.92TB SATA SSD Review

Jump To:

PCMark 10 Storage Benchmarks

PCMark 10

PCMark 8 was originally introduced in 2013 and the storage test uses only one thread to do everything. We are by no means living in the single-core era thanks to corporations like AMD offering CPUs with higher core counts than ever before.  PCMark 10 Storage uses all the CPU cores available on the platform being tested and has been validated to support up to 5GB/s bandwidth. About half the available cores/threads are being used for generating the data needed for I/O and the other half are tasked with sending out I/Os. The I/O in both PCMark 8 and PCMark 10 is asynchronous. That means that the thread sending an I/O does not sit waiting for it to complete, but can instead queue more I/O to match the queue depth in the recorded trace. The CPU thread count used by the benchmark does not equal to the queue depth seen by the storage device. Most modern software has been written to be a muilthreaded solution where it can push IOs from multiple threads. This should play top the strengths of NVMe devices that have come out in recent years as they were designed to handle multiple queues at the same time. So, the take home message here is that PCMark 10 takes advantage of all available threads and uses newer real-world traces.

PCMark 10 Storage Test

PCMark 10 – Full System Drive Benchmark Results:

The first test that we will be running is the PCMark 10 Full System Drive Benchmark. This benchmark uses a wide-ranging set of real-world traces from popular applications and common tasks to fully test the performance of the fastest modern drives. The goal of the benchmark is to show meaningful real-world performance differences between fast storage technologies such as SATA, NVMe, and Intel’s Optane. The Full System Drive Benchmark uses 23 traces, running 3 passes with each trace. Some of the traces include booting Windows 10 and start times for games titles Battlefield V, Call of Duty Black Ops 4, and Overwatch. It typically takes an hour to run and the number of bytes written to the drive during test with default settings is 204 GB.

On the full system drive benchmark the results show the Micron 5100 MAX comes in with a score of 681 points. This puts it ahead of the Samsung SSD 860 QVO TB drive by 30 points.

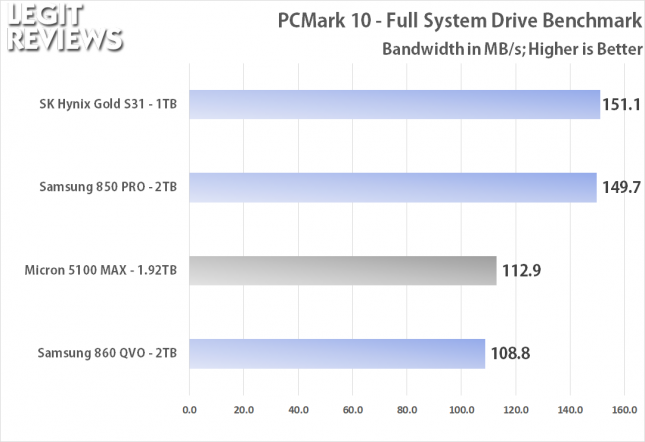

The PCMark 10 Storage Benchmarks overall score is calculated from the bandwidth and average access time sub-scores. The bandwidth subtest is defined by UL in PCMark 10 as bandwidth = bytes / busy_time_for_read_and_write. Here the Micron 5100 MAX 1.92 TB drive finishes at 112.9 MB/s, which doesn’t seem too bad for an enterprise drive as this is a consumer workload that was released years after this drive came to market.

The final subtest result is the average access time and the Micron 5100 MAX has an average access time of 255 microseconds. Considering this drive is using fairly old 32-layer TLC NAND Flash memory it does better than expected!
