Corsair Carbide Spec-Omega Mid-Tower Case Review


Corsair Carbide Spec-Omega Mid-Tower Case Review

At CES 2018 Corsair once again presented a range of updated and new products geared at expanding their product line with new and innovative ideas. While we are still in the half of 2018, Corsair has already launched several new computer cases, Obsidian 500D, Carbide 275R and the Spec-Omega. Today, we will be taking a look at the Spec-Omega (specifically the White model with part number CC-9011119-WW), a Mid-Tower ATX case, that features a Tempered Glass side panel, built-in LED lighting on the front panel, and an angular design for a unique look. The Spec-Omega is currently available for purchase with white, red or black exterior accents. The black or white versions run $89.99 with free shipping, while those looking to make a statement can pick up the red version for just $85.09 shipped.

Corsair Carbide Spec-Omega
Corsair Carbide Spec-Omega – White Overview

In addition to the previously mentioned features, the Spec-Omega also features multiple cooling options, which includes support for up to a 360mm radiator or up to six 120mm radiators; Corsair includes two SP120 fans with the Spec-Omega (one LED and one standard). Storage options include support for three 2.5in on the back side, along with two 3.5/2.5in drive trays; not to forget about the dual USB 3.1 Gen 1 ports. It will support all modern graphics cards up to 370mm in length, all inside a case that measures 495mm x 232mm x 516mm or 19.5in x 9.13in x 20.3in.

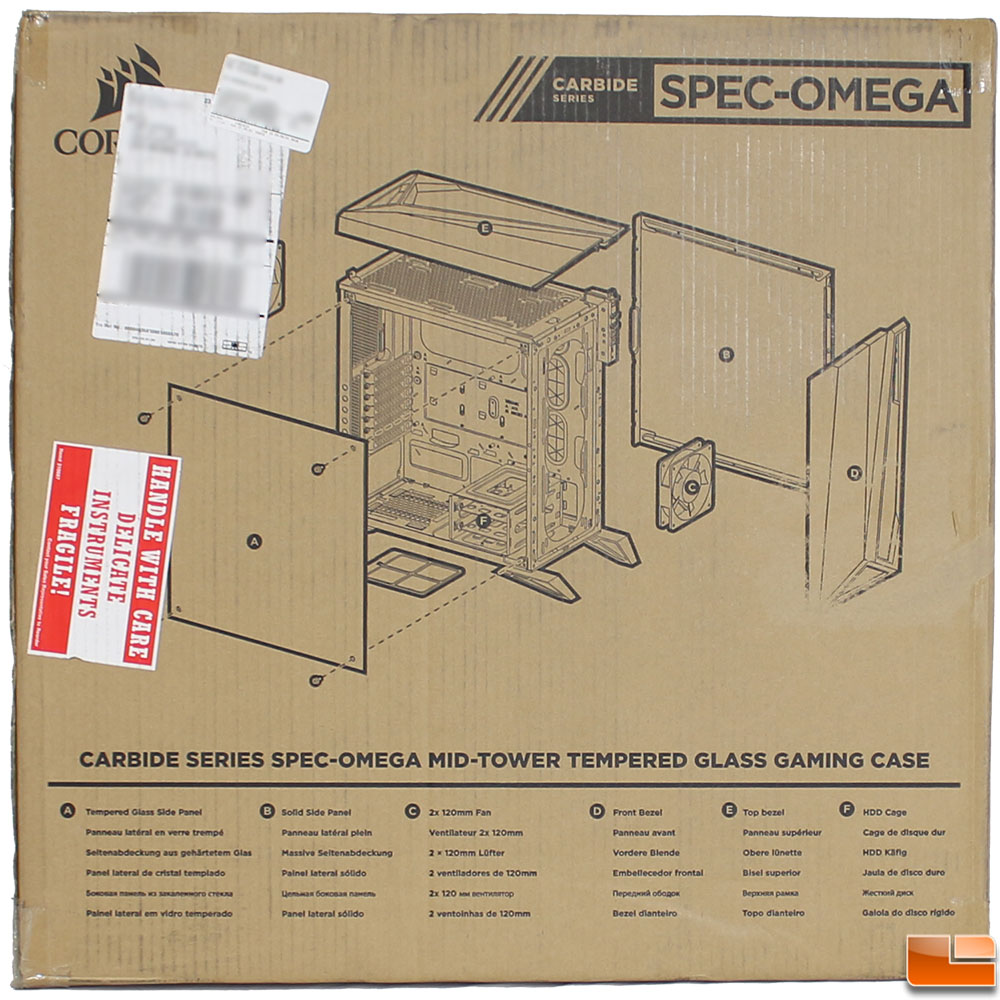

Continuing with the modern trend of keeping the packaging simple, Corsair packs their cases in a standard printed cardboard box. This keeps the printing costs down, while still being able to protect the case and provide plenty of information for a consumer if they should purchase this in a retail setting. In typical fashion, the front of the box, provides a little information; generally an overview picture of the case, and the model. For the details, you turn to the back of the box where you find an exploded view of the case. Some specifications are listed in multiple languages on the sides of the case. Of course, for detailed features and specifications, you have to go to their website. Opening the box, the case itself is packed in a plastic bag, and nestled between two large foam blocks. Interestingly the manual is taped to the foam blocks, which has a purpose.

Corsair Carbide Series Spec-Omega Features and Specifications:

  • Tempered Glass to Show Off Your Hardware
  • Two Included 120mm Fans and Direct Airflow Path
  • Cable Routing Cutouts and Tie Downs
  • Front 360mm Radiator Compatibility
Corsair Carbide Series Spec-Omega Specifications
Weight 7.56kg
Color White/Black



Form Factor Mid-Tower
Dimensions 495mm x 232mm x 516mm
Motherboard Support MicroATX, ATX, Mini-ITX
Maximum GPU Length 370mm
Maximum CPU Cooler Height 170mm
Maximum PSU Length 200mm
Expansion Slots 7
Drive Bays (x3) 3.5in

(x2) 2.5in

Material Steel
Power Supply ATX (not included)
External Connections (x2) USB 3.0

(x1) Headphone Port

(x1) Microphone Port

Fan Mount Locations Front: (x3) 120mm or (x2) 140mm

Top: (x2) 120mm or (x2) 140mm

Rear: (x1) 120mm

Fans Included Front: (x1) 120mm LED

Rear: (x1) 120mm

Radiator Mount Locations Front: 360mm or 280mm

Top: 240mm

Rear: 240mm

Warranty Two Years
Corsair Carbide Spec-Omega
Corsair Carbide Spec-Omega – Accessories

Corsair is known for including a well thought out accessory pack with their cases. The Spec-Omega includes six cable ties, one additional motherboard standoff, four SSD pan-head screws, sixteen motherboard, sixteen SSD flat-head screws, sixteen short fan screws, and four long fan screws. Included with the previously mentioned user manual is a standard hex-key; we’ll see shortly why this is needed and why Corsair made sure it was easily visible with the user manual.

The Corsair Carbide Spec-Omega is available in three colors, White/Black, Red/Black and Black. Other than the obvious color difference, there are two other side differences. The White model includes a White LED accent light on the front, and a White LED fan. The other two models have a Red accent light, and a Red LED fan.

Let’s take a look at what the Corsair Carbide Spec-Omega has to offer.
