NZXT Hale82 V2 550W White PSU Review

Jump To:

Testing results (Regulation & Ripple)

 NZXTH2550table

 NZXTH2550v3

 NZXTH2550v5

NZXTH2550v12

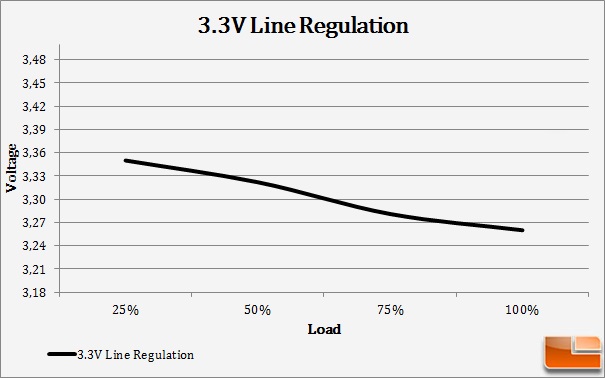

The electrical performance of the NZXT Hale82 V2 550W power supply is good, yet far from astounding. Voltage regulation is at about 2.8% for all voltage lines, much lower than the design limit of 5% and very good for a performance product. Ripple suppression is good, with the maximum recorded ripple on the 12V line being 60mV under maximum load, half of the 120mV allowable maximum.
