Ashes of the Singularity DX12 Benchmarks With AMD and NVIDIA

Jump To:

DX12 Benchmark Results – Explicit Multi-GPU

Explicit Multi-GPU Testing

Ashes of the Singularity is the first game title that uses the explicit multi-GPU abilities of D3D12. In previous APIs, the existence of multi-GPUs was largely hidden to the application and there was no way for the application to drive multiple GPUs. D3D12 enables us explicit control over all GPUs in the system and Ashes of the Singularity has the ability to do arbitrary AFR (alternate frame rendering) on multiple GPUs. The really exciting thing about this feature is that this can occur even if the GPUs are from different vendors!

Mixed GPU DX12 Testing

We tested mixed multi-GPU performance on Ashes of the Singularity with the AMD Radeon R9 380X and the NVIDIA GeForce GTX 960 video cards. We’ve seen other sites compare the flagship cards, but not too many have taken a look at the more mainstream cards.

Windows 10 Device Manager

We had no problem getting both GPU’s running on the latest Windows 10 64-bit drivers (Crimson 16.2 and GeForce 362.00) and were off and benchmarking in just a couple minutes.

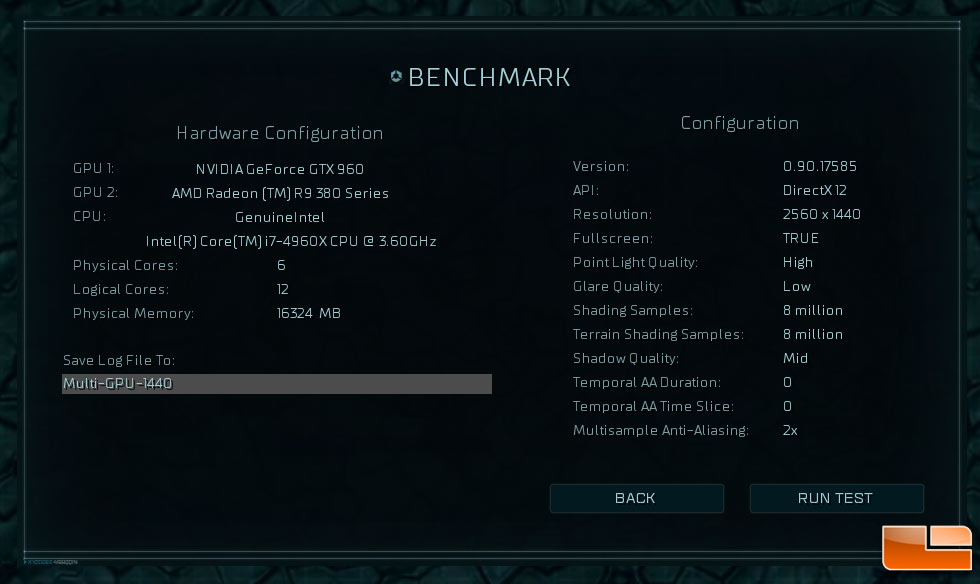

multi-gpu settings

We checked the multi-GPU box in the Ashes of the Singularity benchmark tool and both GPU’s were listed under the hardware configuration as shown in the image above.

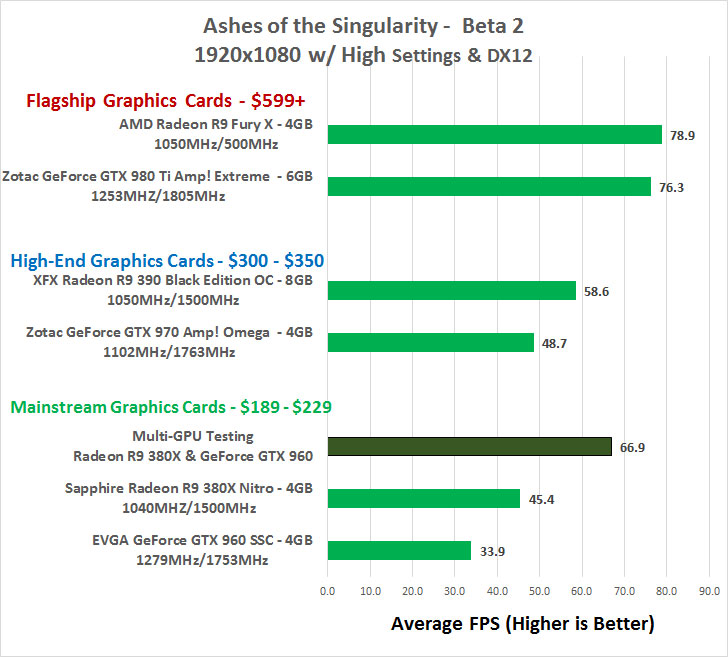

Ashes of the Singularity 1080P Performance Benchmarks

1080P Benchmark Results: It looks like DirectX 12’s explicit multi-GPU support works pretty well as our 2-way mixed card setup from AMD and NVIDIA gave us nice performance gains at 1920 x 1080. We were able to basically double the performance of the single EVGA GeForce GTX 960 and went from 33.9 FPS to 66.9 FPS on average when we combined the AMD Radeon R9 380X and the NVIDIA GeForce GTX 960. The benchmark ran smoothly and looked great!

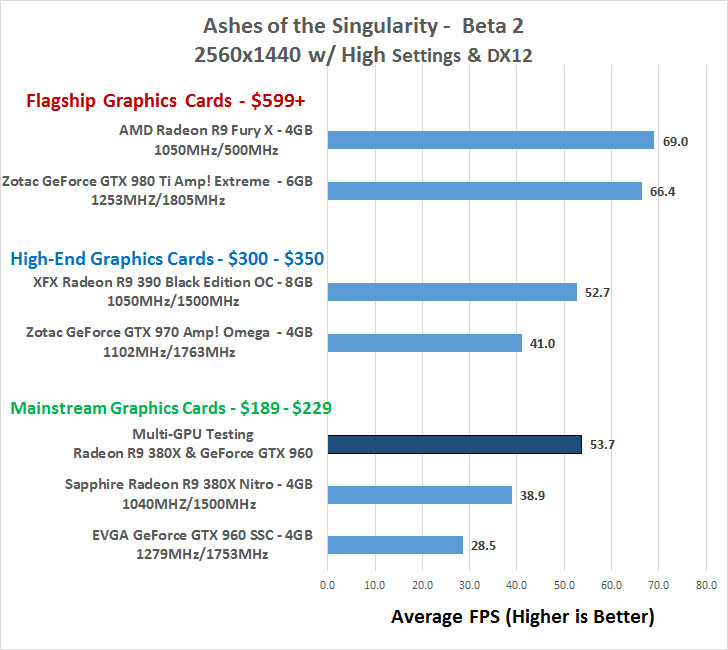

Ashes of the Singularity 1440P Performance Benchmarks

1440P Benchmark Results: At 2560 x 1440 we were able to go from a low of 28.5 FPS on the EVGA GeForce GTX 960 SSC to 53.7 FPS with the two cards working together. This put the Radeon R9 380X and GeForce GTX 960 combo performing ahead of the XFX Radeon R9 390, but not by much and the this combination of two cards costs way more than the single card.

Ashes of the Singularity 4K Performance Benchmarks

4K Benchmark Results: It didn’t come as a surprise to us, but as we increased the resolution the paired up mainstream cards lost the performance gains it once had over the high-end Radeon R9 390 card. Just not enough horse power in the smaller GPU’s to compete with the larger ones and the 4GB memory is also likely a limiting factor here at 4K resolutions. It is still very cool to see that mixing GPUs from totally different vendors works on DX12!

Final Thoughts and Conclusions

We are going to conclude with that as this benchmark is still on a game title that is in development and these numbers will likely change more before the final build of Ashes of the Singularity is released on March 22nd, 2016.

Print
Jump To:
  • Matthew Curry

    well looking like my 380x wasnt such a bad buy lol. crossfiring it later this month and got ashes of the singularity in a free offer with newegg. cant wait to see the benchmark.

  • Hapi hap

    cant wait to see other games with this new flavor of multi-gpu on dx12, has there been any other titles announced?

  • NMRH

    Well, if anything, the 390 its performing very nicely for its price.

  • Sean Easterling

    But how is the mult-gpu scaling compared to SLI or Crossfire? Could you do 2x FuryX vs 2x 980ti multi-gpu benches?

  • shadowhedgehogz

    Considering Nvidia hasn’t enabled Async (if they even can..) the 980 Ti is doing really well, close to the Fury x.. Great news for owners of that card, though the 970 is looking pretty weak and likely the 980 won’t be much better.

    I guess the 980 Ti just has enough brute force strength to put in a good showing.

    • Diego Paolini

      they using 980ti amp extreme that is one of best 980ti factory overcloket… with reference gap its about 20-30%

      • Robdarian

        At close to the same price, no one is buying reference cards. Same as when everyone bitched about the 290x reference overheating, no one was even buying that card.

  • Deregtz

    What about integrated graphics combined with AMD or Nvidia? Iris IGP is pretty powerfull these days.

    If you test that it would be pretty interesting.
    Now its just another combine a AMD and Nvidia GPU article..

    While most people have want to know how integrated graphics will work together with a GPU.

    • Daniel Anderson

      I’m honestly curious about Intels iGPU and DX12 w/ and w/o dGPU’s.

      • Jeffrey Byers

        It’s been tested and it DID benefit. It added over 60% of it’s processing power. The better the dGPU the less noticeable the improvement is but it definitely can benefit.

        For example, if the iGPU alone got 10FPS and the dGPU alone got 50FPS then together it was 56FPS.

    • Domaldel

      From what I’ve heard it’s a bad idea to combine a low performance GPU with a high performance one in this benchmark.
      You end up with the dGPU performing worse then alone.
      However some of the AMD APUs apparently manages to improve the performance with a low/mid end dGPU (with dx12)

      (There was an article about that stuff somewhere)

  • Coach

    Love the article. It is very interesting to see the results, especially the combo of the two brands.
