Angelbird SSD wrk 256GB SSD Review – Silicon Motion SM2246EN
By
The SSD Benchmark Test System
Before we look at the numbers, lets take a brief look at the test system that was used. All testing was done on a fresh install of Windows 8.1 Pro 64-bit and benchmarks were completed on the desktop with no other software programs running. Windows has the power option set to high performance.
The Intel Z97 platform that we used to test the M.2 PCIe SSD was based around the ASUS Z97-A motherboard with BIOS 1008 that came out on 5/29/2014. The Corsair Dominator Platinum 8GB 2133MHz memory kit was set to XMP 1.3 memory profile settings, which is 1.65v with 9-11-11-31 2T memory timings. The Corsair Neutron GTX 240GB SSD was used as the primary drive (uses 19nm NAND and M310 firmware).
Intel Z97 Test Bench
| Intel LGA 1150 Test Platform | |||||
|---|---|---|---|---|---|
| Component | Brand/Model | Live Pricing | |||
|
Processor |
Core i7 4770k | ||||
|
Motherboard |
ASUS Z97-A | ||||
|
Memory |
Corsair Platinum 2133MHz 8GB | ||||
|
OS Drive |
Corsair Neutron 240GB | ||||
|
Power Supply |
Corsair AX860i | ||||
|
Operating System |
Windows 8.1 Pro 64-Bit | ||||

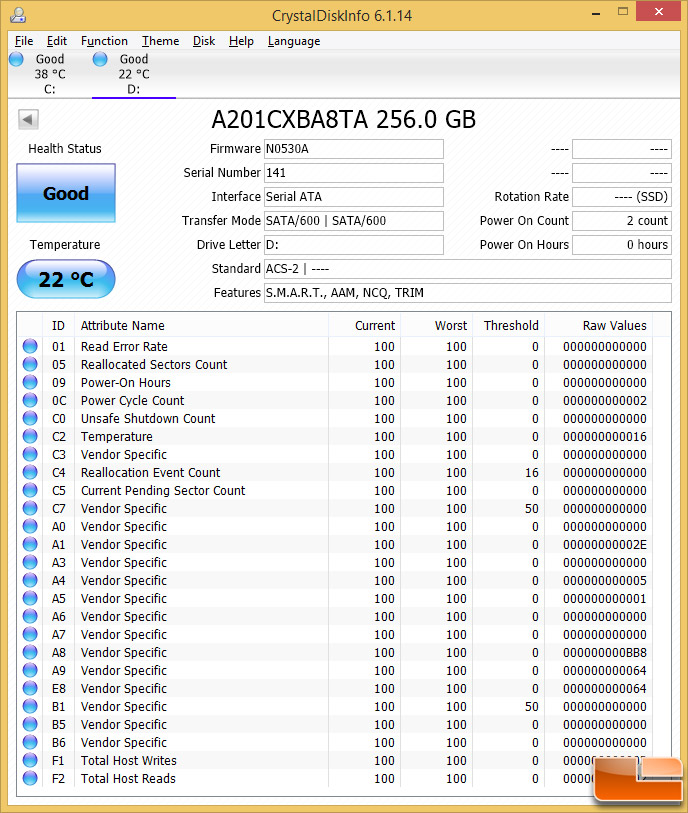

CrystalDiskInfo 6.1.14 Readout:
The readout on CrystalDiskInfo 6.1.14 shows that the Angelbird SSD Wrk 256GB SSD supports S.M.A.R.T., APM, NCQ, and TRIM. The firmware version that we are running at the time of testing on the drive is N0530A.

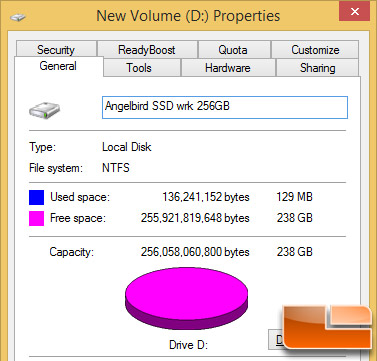

The Angelbird SSD wrk 256GB (1GB byte = 1,000,000,000 bytes) drive yields 238GiB (1Gib = 1,073,741,824 bytes) available to the user as reported by Windows. This is typical for a drive of this capacity after the spare area and Windows takes their share.
Let’s have a look at the performance!
