Intel 311 Larson Creek 20GB SLC SSD Review

Jump To:


Intel 311 Larson Creek Features

Key Points SRT From Intel Engineering on SRT’s Benefits Over Dual Drives:

  • SRT can provide performance gains across the entire hard drive capacity – no matter how big the hard drive
  • SRT maintains a single drive letter. User only has to manage a C: drive
  • SRT can use an SSD as small as 20GB SLC and provide optimum performance/cost benefit
  • SRT can also provide SSD-like performance gains caching a RAID array of hard disks
    • Solve RAID 5 slowness without sacrificing an additional disk for RAID 10
  • SRT also saves power due to opportunistic spin-down of the hard disk

The Intel SSD 311 Series 20GB SSD has the following general performance ratings:

Random Read/Write IOPS (Input/Output Operations per Second)

  • 4 KB Read – Up to 37,000 IOPS
  • 4 KB Write – Up to 3,300 IOPS

Maximum Sustained Read and Write Bandwidth

  • Sequential Read – Up to 200 MB/s
  • Sequential Write – Up to 105 MB/s

Latency

  • Read – 65 μs (TYP)
  • Write – 75 μs (TYP)
  • Power On to Ready – 1.50 s (TYP)

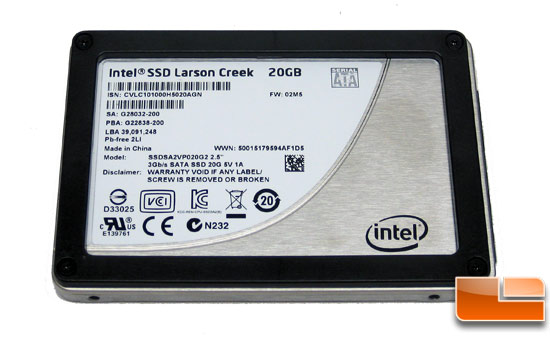

Intel 311 Series SSD

Intel SSD 311 Series Advance Product Specifications:

• Capacity: 20 GB

• Components: Intel 34nm NAND Flash Memory

Single-Level Cell (SLC)

• Form Factors:

– 2.5-inch SATA

Thickness: 9.5 mm

Weight: up to 88 grams

– Full-sized mSATA

Thickness: 3.66 mm

Weight: up to 10 grams

• Sustained Bandwidth Performance

– Sequential Read: Up to 200 MB/s

– Sequential Write: Up to 105 MB/s

• Read and Write IOPS

(Iometer Queue Depth 32)

– Random 4 KB1 Reads: Up to 37,000 IOPS

– Random 4 KB Writes:Up to 3,300 IOPS

• Latency

– Read: 65 μs (TYP)

– Write: 75 μs (TYP)

• Compatibility

– Intel SSD Toolbox with Intel SSD Optimizer

– Intel Rapid Storage Technology

– Intel Smart Response Technology

– SATA Revision 2.6; compatible with

SATA 1.5Gb/s and 3Gb/s interface rates

– ATA/ATAPI-7

– SSD-enhanced S.M.A.R.T. ATA feature set

– Native Command Queuing (NCQ)

command set

– Data set management command

Trim attribute


• Power Management

– 5 V (2.5-inch SATA) Supply Rail

– 3.3 V (mSATA) Supply Rail

– SATA interface power management

• Power

– Active (MobileMark 2007 Workload):

150 mW (TYP)

– Idle2: 75 mW DIPM-enabled (TYP)

• Temperature

– Operating: 0o C to 70o C

– Non-Operating: -55o C to 95o C

• Shock (operating and non-operating)

– 1,500 G/0.5 msec

• Vibration

– Operating: 2.17 GRMS (5-700 Hz)

– Non-operating: 3.13 GRMS (5-800 Hz)

• Reliability

– Uncorrectable Bit Error Rate (UBER):

1 sector per 1016 bits read

– Mean Time Between Failures (MTBF):

1,200,000 hours

• Certifications and Declarations

– UL

– CE

– C-Tick

– BSMI

– KCC

– Microsoft WHQL

– VCCI

– SATA-IO

• Product Ecological Compliance

– RoHS

1. 4 KB = 4,096 bytes
2. Device Initiated Power Management (DIPM)-enabled.
