Core Temperatures Examined

Jump To:


Test Setup:

  • Intel Pentium 4 3.2E & 3.2C 800MHz FSB (Intel ES unlocked Samples)
  • ABIT IC7-MAX3 & ASUS P4C800-E Deluxe Canterwood Motherboards
  • nVidia 5900 Ultra 256mb (nVidia refference)
  • Corsair XMS PC-4400 Memory
  • Corsair HydroCool 200ex (Water Cooled) w/ Arctic Silver Ceramique TIM
  • Seagate 120Gb Serial ATA 150 Hard drive
  • Antec TruePower 430W Power Supply
  • 17″ Sony Trinitron monitor

Driver/Software Versions:

  • NVIDIA Detonator 53.03
  • Intel Chipset Software Utility 5.00.1012
  • ABIT BIOS Beta 14 / ASUS BIOS 1015
  • ASUS Probe 2.22.04
  • ABIT EQ 1.10W
  • MBM 5.3.6.0

TEST 1: Overclocked Prescott at idle

For this test we ran our Prescott at 250MHz FSB w/ 1.5875Vcore giving us 4.0GHz.

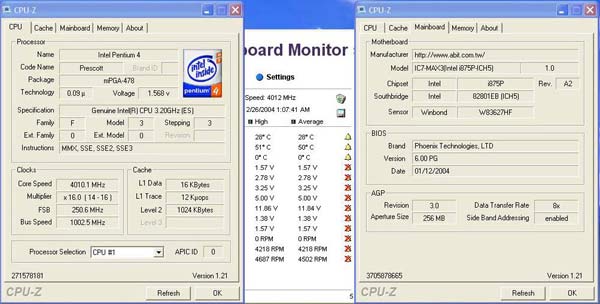

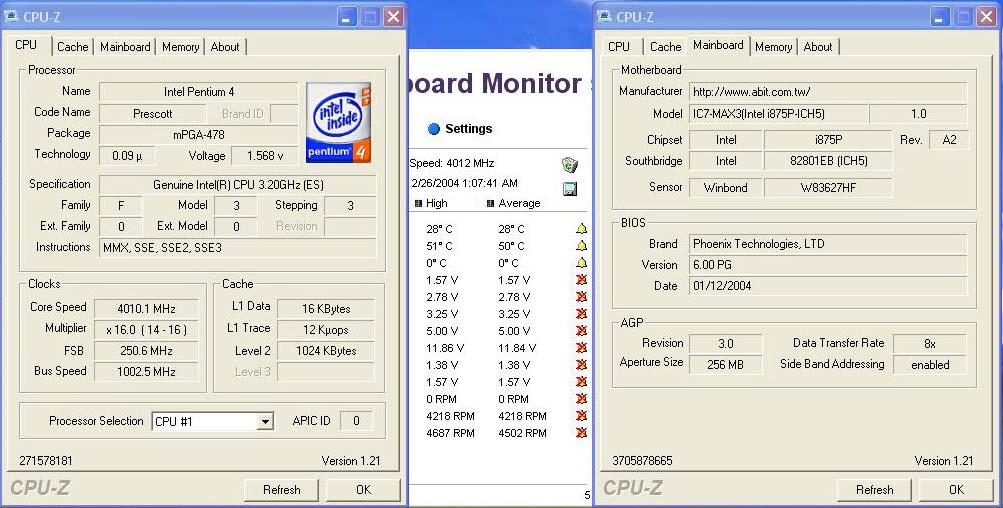

ABIT Results: (Click image for full size)

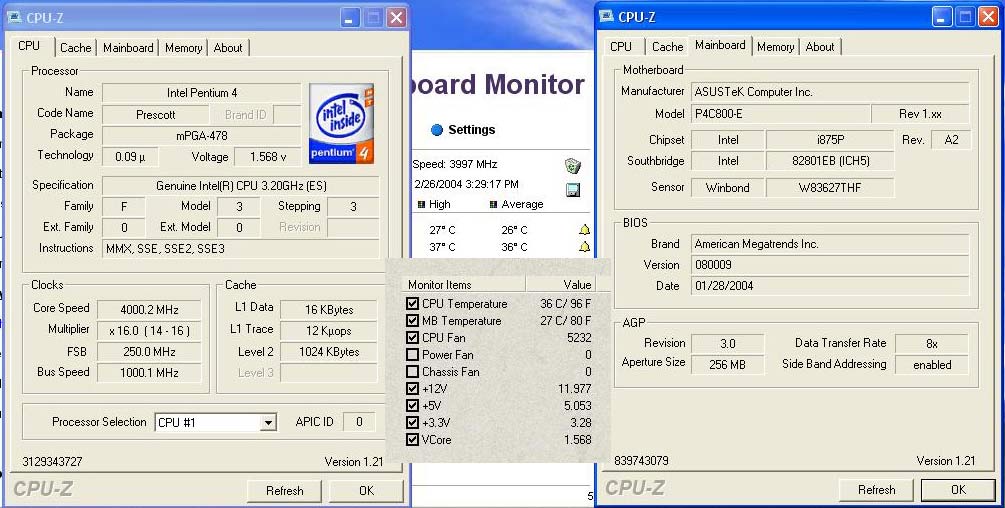

ASUS Results: (Click image for full size)

Results: If you took a close look at the images you will notice that the ABIT board recorded idle temps at 50C while the ASUS board was showing 36C on both MBM5 and ASUS Probe. This is a 14C (25F) difference between the boards. Both boards have the Vcore set to 1.5875V in the BIOS, but are running the same actual voltage of 1.568V. Both the ASUS and ABIT boards record the motherboard temperatures around 26-28C. Using the same monitoring program, processor (Important due to the fact that each CPU has different amounts of leakages), voltage settings, and testing conditions we found a temperature difference to great to ignore or call “random error”.

TEST 2: Default Northwood at idle

Since the Prescott is a new processor based on a new core the next logical step is to look at a known processor. For this test we ran our 3.2GHz Pentium 4 Northwood processor at defualt settings.

ABIT & ASUS Results: (Click images for full size)

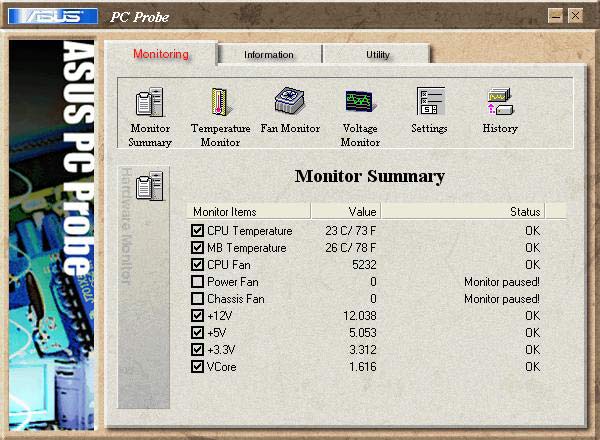

ASUS “Default” temps

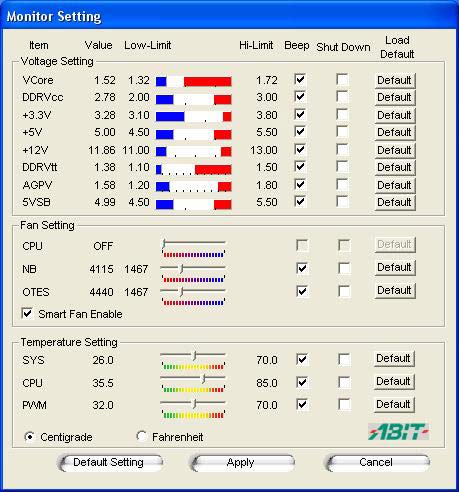

ABIT “Default” temps

Results: Again we see vast temperature differences between the CPU temperatures and this time the Motherboard temperatures are identical. The ABIT board came in at 36C while the ASUS showed 23C. The CPU temperature on the ASUS board is actually 3C lower than the board temps! The 13C difference here goes along with the 14C gap we noted using the Prescott. It should be noted that on this test we could not get the VCore to be identical, but even with the ASUS board having almost .1V more the temps were much lower than the ABIT’s reading. MBM5 confirmed these results, but we put in the above pictures so we don’t put you to sleep. We also used Intel’s Canterwood “Bonanza” motherboard and found CPU temps to be around 27C. We found that these are three motherboards with three very different temperature readings.

This test eliminated the Prescott as causing inaccurate readings.

Putting It Together:

It turns out that the CPU or “Core” temperatures are not a measure of actual temperatures. The temperature is actually ?calculated? by the chip that is associated with the thermal diode. There is a parameter for calculation that is provided by the I/O chip vender, which is supposed to be standard, but that doesn’t seem to be the case. It has also been determined and confirmed by Intel that the temperatures observed here have too much variation to have been calculated using the same parameter. This means that the issue lies in the inconsistency of the parameters written by different companies.

We also found that it is not possible to predict the activation of the thermal control circuit (TCC) by monitoring the on-die thermal diode via software utilities. This is because the Thermal Monitor?s temperature sensor and the on-die thermal diode are located at the different place on the silicon. The temperature distribution across the die can result in significant temperature differences between the on-die thermal diode and the Thermal Monitor?s temperature sensor. Making it virtually impossible to predict when the TCC will engage by monitoring the on-die thermal diode.

The only way to make sure that board temperatures are correct (at least close) and consistent is for Intel to better regulate a standard parameter that motherboard manufacturers and I/O venders must follow. Otherwise we will continue to see large temperature differences between brand lines. At the same time I also feel that it’s not Intel’s job to police how the venders implement their monitoring technology. This isn’t a perfect world and perfection takes time and time is money, so the end user should get used to seeing core temperatures that are more than likely far from accurate.

So the next time your buddy is bragging that his cooling solution on an ASUS board is better than the one on your ABIT board just laugh and say whatever! If he doesn’t believe you show him this article and put him in his place! At the current time it is not possible to consider comparing temperatures between two different brand lines.

Legit Bottom Line: The core temperatures that we “monitor” are inaccurate and are nothing more than a mathematical equation that varies due to the fact that board & I/O chip venders don’t use the same equation!

Documents Used:

A Big Thanks To The Following People/Companies For Letting Me Bug Them During My Research:

  • Intel Public Relations
  • Intel’s Thermal Engineering Dept.
  • ABIT USA/Taiwan
  • ASUS USA
  • Corsair
  • Joel @ Sudhian
