ASUS P6T Deluxe OC Palm Motherboard Review

Jump To:


Overclocking Results

ASUS P6T Deluxe Palm OC

With a retail Core i7 920 we were easily able to reach 3.6GHz at very low voltage for a modest 933MHz overclock. While I would love to show you a big number here, I just haven’t gotten to spend enough time learning the nuances of overclocking an i7. 3.6GHz-3.8GHz should be attainable for most CPU’s at modest voltages, while still keeping the CPU temperature down and maintaining mission critical stability. Even after an hour of full load on the OCCT stability tool, our CPU doesn’t crack 58C!

OC Palm:

ASUS P6T Deluxe Palm OC

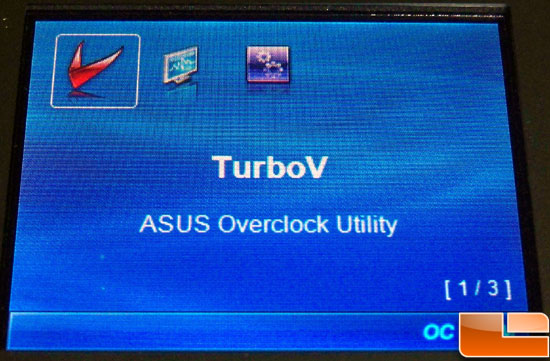

This handy device has quite a few tricks up its sleeve. After installing the drivers, hooking up the USB cable, and hitting the power button, we were greeted with the screen above.

ASUS P6T Deluxe Palm OC

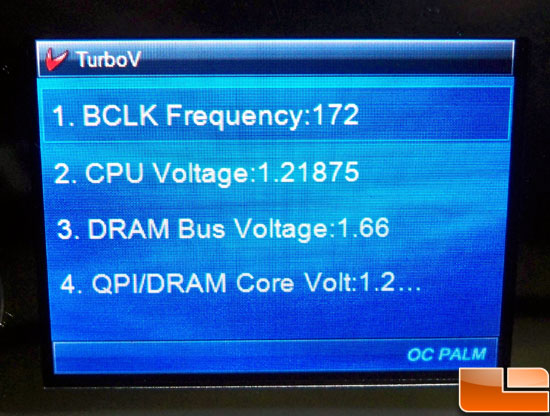

The first menu is the TurboV; you can see here that we have direct access to the BCLK Frequency, CPU, DRAM, and QPI voltages.

ASUS P6T Deluxe Palm OC

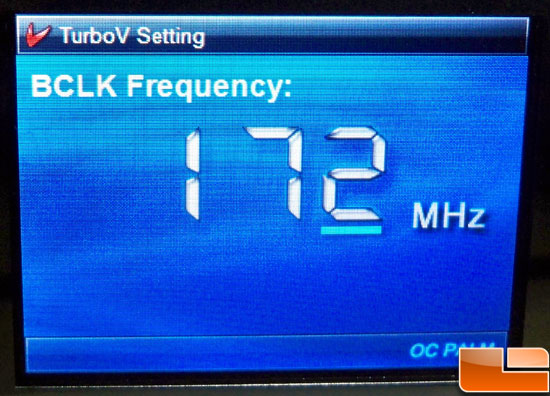

Pressing the return button we gain access to change the BCLK speed. With the OC Palm you can quickly test different settings for stability without having to reboot your system.

ASUS P6T Deluxe Palm OC

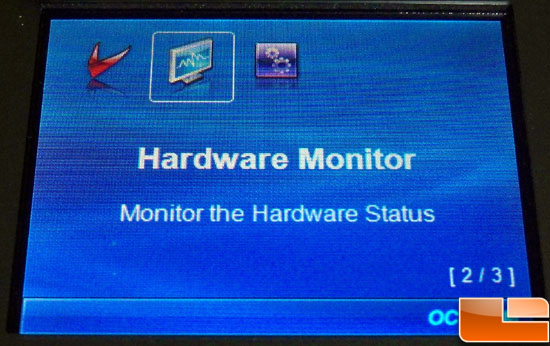

The second menu is the Hardware Monitor. For this to work correctly you must have the ASUS PC probe software installed. This is very handy as you have access to all the critical temperatures of your system at a glance, even while you’re gaming.

ASUS P6T Deluxe Palm OC

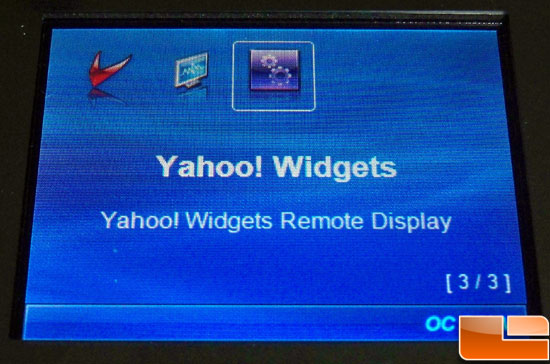

Finally we have Yahoo Widgets. This is completely customizable depending on what widgets you install. If you are a weather nut you could even have the current temperature and forecast displayed. You could even install the woot! for quick updates while you’re doing other things.
