Gigabyte GeForce GTX 760 4GB Video Card Review – 2GB or 4GB of VRAM

Jump To:

Test System

Before we look at the numbers, let’s take a brief look at the test system that was used. All testing was done using a fresh install of Windows 7 Ultimate 64-bit and benchmarks were completed on the desktop with no other software programs running. It should be noted that we average all of our test runs. There has been some concern of people testing a cold card versus a hot card, but we’ve always done out testing ‘hot’ since the site started back more than a decade ago.

Video Cards & Drivers used for testing:

  • NVIDIA GeForce 331.70

Intel X79/LGA2011 Platform

test-system

test-system

The Intel X79 platform that we used to test the all of the video cards was running the ASUS P9X79 Deluxe motherboard with BIOS 4401 that came out on 09/02/2013. The Corsair Vengeance 16GB 1866MHz quad channel memory kit was set to 1866MHz with 1.5v and 9-10-9-27 2T memory timings. The OCZ Vertex 3 240GB SSD was run with firmware version 2.25.



The Intel X79 Test Platform



Component



Brand/Model



Live Pricing



Processor



Intel Core i7-3960X



Motherboard

ASUS P9X79 Deluxe



Memory

16GB Corsair 1866MHz



Video Card



Various



Solid-State Drive



OCZ Vertex 3 240GB



Cooling



Intel RTS2011LC



Power Supply

Corsair AX1200



Operating System



Windows 7 Ultimate 64-bit

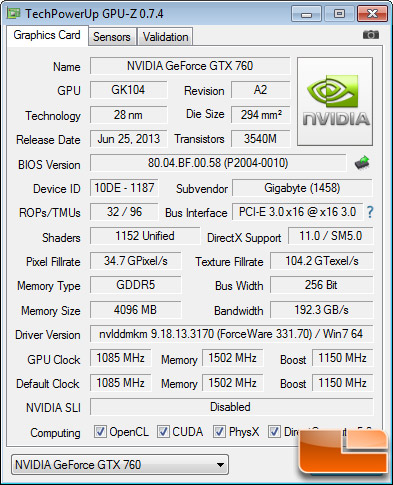

Gigabyte GeForce GTX 760 4GB Video Card GPU-Z Information:

 gtx760-4gb-gpuz

gigabyte-760-idle

NVIDIA GeForce GTX 760 2GB Video Card GPU-Z Information:

gtx760-2gb-gpuz



Print
Jump To:
  • Anthony Kenneth Steele

    so only good for sli then.

  • Ryan

    What about something like modded Skyrim

  • mark

    I have a biostar x79 and this card 4gb and I set the bios to gen 3 and it only shows as gen 2 on the pre bios screen and in windows, can anyone help please

  • Mathew Andresen

    Very nice article, ty. Glad I’m going with the 2gb

  • Domas

    Firstly very nice review, thanks for your job :) I’m just wondering how much does the heating influences gaming performance. The Gigabyte card was really ahead in these parameters, so maybe it’s worth to pay these 40$ just to be safe not to get high temp? Also is there any kind of cap in temperature regarding video cards? What is dangerous and what is just simply ‘an ok’ temperature?

    • mowa

      when you want to max out your performance, you have to try to avoid heat in any way. I have a laptop right now that only has one fan and sometimes overheats and shuts down. This happens when CPU and/or GPU reach over 90-100° celcius. However on a desktop PC this should not happen because they have much better air flow and cooling.
      Just try to avoid heat in any way because it will slow down your sytem

  • bengg

    this 3 fan formation is quite something…i would add another at the back…checkout my 3 fan video card mod – http://www.benshardwareblog.com/pc-hardware/hd3850-triple-fan-solution

  • Liam

    is it worth getting a 4gb sli?

  • Liam

    Does anyone know how many watts the 4gb oc edition uses?

  • Praisejeebis

    Just recently bought a graphics card and after days a research and then looking at this article i seem to be missing something. Are some of these tests to help us decide between 2g and 4g run with a reference card vs an overclocked gigabyte card? shouldn’t they both be gigabytes

    • Liam

      It depends on what games you play to how well the card works

    • Anthony Lim

      I have the 4 GB OC edition and I was wondering if I have the right PSU, it is thermaltake smart M series 750w?

  • CatiePotatie

    Interesting to see that one game has a strong difference at 4k while the other doesn’t.. I have 3x 660ti 2GB graphics cards and mostly play at 6000×1080 (BC), sometimes 8000×1440 if it can handle it but I think the 2GB is holding me back a bit there. If I could have found some more conclusive tests when I was researching this I might have opted to wait a bit and go for something a little beefier.

  • DWillyEfect

    What about in SLI? Would the extra memory matter then?

    • Nathan Kirsch

      Nope, because the memory is dedicated to each card. This means that you don’t gain any additional frame buffer by running say two 2GB cards as you are still stuck with 2GB of memory.

      • Wilbur

        I presume DWillyEfect mean the extra memory which 4GB cards in SLI would provide. (As it is a 4GB card that is reviewed here). Then you would suddenly have roughly the same horsepower as a GTX 690 or a 680 SLI setup, but without the shortcomings of those card´s small memory capacity. It seems to me that the only application for a 4GB card like this, is in a SLI setup running monster resolutions.

        • Nathan Kirsch

          duh, yeah that would be interesting and might work out well. If only I had two 4GB GTX 760′s or GTX 770′s to try that out on.

  • basroil

    Any chance we’ll see one of these for the 770? It’s got enough kick that perhaps there’s enough difference on BF4 to matter.

    • Nathan Kirsch

      Possibly if this article does well we can take a look at a 2GB versus 4GB version of the GTX 770. Gigabyte charges $55 more to double up the memory on their GeForce GTX 770 OC WindForce 3X, so it hopefully does a little better for such a significant price hike. It’s the same memory that is on this card, so there is no reason it should cost more to double up the memory on the GTX 770 versus the GTX 760.

      • basroil

        Yea, been looking at those and they are all close to $400 even without overclocking. Guess you can’t fight markups when there’s a monopoly on a card.
