Thermaltake SpinQ CPU Cooler Review

Jump To:

Themaltake SpinQ CPU Cooler Looks Wicked

Thermaltake SpinQ

Thermaltake has been around for as long as I can remember manufacturing CPU coolers like the Orb series, and cases like the ever so popular Armor line. This time we are looking at their newest offering to the cooling world, the SpinQ. Legit Reviews began posting pictures of the SpinQ back in August when the staff saw it at NVISION 08, so if it looks familiar to you on the site that might be why. Due to its cooling fin arrangement this cooler is one of the more visually interesting coolers I have looked at this year, but more on this in a moment. Let’s take a quick look at the specifications for the SpinQ.


  • Stylish Appearance: Classic Cylinder Heatsink and Spiral Aluminum Fins
  • Optimized Structure: 6 Copper Heatpipes, 80mm Blow Fan, Low Noise Performance, VR™ Fan Control
  • Smart Airflow Design: Integrated with System Fan, 360°Heat dissipation


  • Model: CL-P0466
  • Compatibility:
  • Intel Socket LGA 775 : Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium D / Pentium 4 / Pentium / Celeron D / Celeron
  • AMD Socket AM2 /AM2+ / 939 / 754: Phenom / Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Sempron
  • Heatsink Dimension: 121.63mm x 90mm x 151.85mm
  • Heatsink Material: 50 Aluminum Fins + Copper Aluminum Base
  • Heatpipe: Ø 6mm x 6
  • Fan Dimension: Ø 80mm x 85 mm
  • Rated Voltage: 12 V
  • Started Voltage: 7 V
  • Fan Speed: 1000 ~ 1600 RPM
  • Power Input: 5.4 W
  • Rated Current: 0.45 A
  • Noise: 19 ~ 28dBA
  • Life Expectation: 50,000 Hours
  • Connector: 3 Pin
  • Weight: 667g
  • Packing

    Thermaltake SpinQ

    The SpinQ comes packaged so you can see the unique fin arrangement.

    Thermaltake SpinQ

    The side of the box has all the specifications and a nice diagram explaining how the cooler functions.

    Thermaltake SpinQ

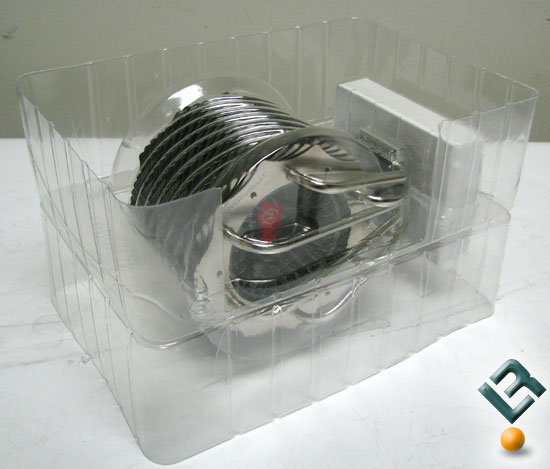

    The cooler is held in snugly in place along with the accessory box inside a plastic clamshell.
