Samsung 840 Pro Series 512GB SSD Review

Jump To:


CrystalDiskMark and Anvil IOPS

CrystalDiskMark is a small benchmark utility for drives and enables rapid measurement of sequential and random read/write speeds. Note that CDM only supports Native Command Queuing (NCQ) with a queue depth of 32 (as noted) for the last listed benchmark score. This can skew some results in favor of controllers that also do not support NCQ.

CrystalDiskMark 3.0.2 x64 – Intel Z77 Platform

Samsung 840 Pro 512GB CRYSTALDISKMARK Z77

CRYSTALDISKMARK Z77

Benchmark Results: Pretty amazing performance here, only paced by the performance of the OCZ Vector drive which has been heralded as one of the fastest drives on the market.

Anvil Storage Utilities 1.050 RC6- Intel Z77 Platform

Along with the move to a new platform, we decided to make a change in one of the benchmarks. There’s a relatively new benchmark called Anvil Storage Utilities that is in beta but close to production. It’s a very powerful tool that measures performance through a variety of tests which can be customized. Since some of the tests more or less duplicate what we get from other benchmarks we use already, we decided to use the IOPS (Input/Output Operations Per Second) testing on 4kb file sizes at a queue depth of 32. IOPS  performance is something SSD makers tout quite a bit but we generally don’t do a lot of IOPS testing because frankly a lot of users can’t relate to IOPS metrics as well and it tends to be more meaningful to the enterprise/server crowd. Still, it is another performance indicator with relevance and while some drives post good MB/s numbers, their IOPS scores aren’t always commensurate which this test will prove out.

Samsung 840 Pro 512GB Anvil Write IOPS

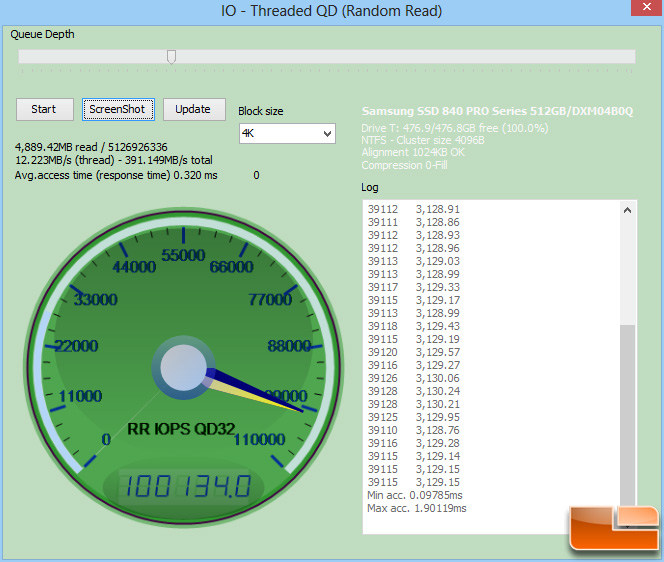

Samsung 840 Pro 512GB Anvil Read IOPS

Benchmark Results: Again, superb performance with read IOPS hitting six figures and writes just slightly off of the specification. It’s quite a battle between the OCZ Vector and the Samsung 840 Pro.

Samsung 840 Pro 512GB Anvil IOPS Chart
