OCZ Storage Solutions Launches New Z-Drive 4500 PCIe SSD Series

By

OCZ Storage Solutions Launches New Z-Drive 4500 PCIe SSD Series with Windows Accelerator (WXL) Software

New Z-Drive 4500 Series, utilizing Toshiba 19nm NAND, is OCZs Most Advanced, Robust and Affordable PCIe Edge Card to Date and Includes OCZs New WXL Software

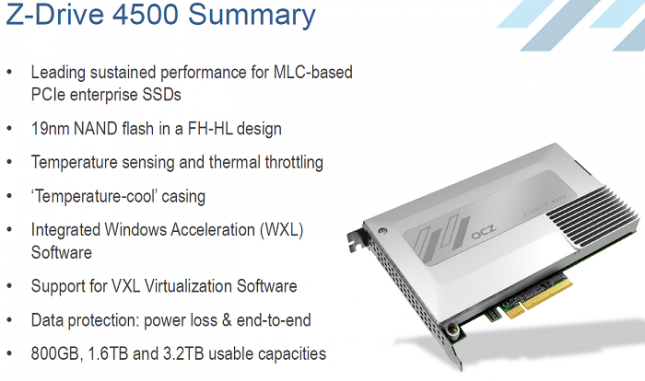

OCZ-ZDrive-4500

SAN JOSE, CA March 4, 2014 – OCZ Storage Solutions a Toshiba Group Company and leading provider of high-performance solid-state drives (SSDs) for computing devices and systems, today announced the introduction of the enterprise-class Z-Drive 4500 PCI Express (PCIe) SSD Series. The new Z-Drive 4500 Series delivers even higher performance in comparison to OCZs Z-Drive R4 Series, leverages 19 nanometer (nm) MLC NAND flash, and features a more robust architectural design covering 800GB, 1.6TB and 3.2TB usable capacities.

Each model within the Z-Drive 4500 Series is integrated with OCZs new Windows Accelerator (WXL) Software — a flash management and caching solution for Microsoft Windows Server applications also announced by the Company today. WXL Software enables IT managers to deliver low-latency flash deployable as a local flash volume, a flash cache for HDD volumes or as a combination of both.

When deployed for caching, WXL Software performs statistical out-of-band processing to intelligently cache the most frequently accessed data on Z-Drive 4500 flash. A cache warm-up and analysis mechanism is also featured enabling important and demanding analytical jobs to be loaded onto the Z-Drive 4500s flash cache in advance to assure that this critical data is available to the application at the exact time it is needed.

The new Z-Drive 4500 Series are driven by OCZs proprietary Virtualized Controller Architecture (VCA) and LSI SandForce SF-2582 processors. Based on SNIA test methodologies, the series delivers industry-leading sustained performance for MLC-based PCIe edge cards including maximum read bandwidth of up to 2,900 MB/s, maximum write bandwidth of up to 2,200 MB/s, random 4K block read throughput of up to 252,000 input/output operations per second (IOPS) and random 4K block write throughput of up to 76,000 IOPS.

Our new Z-Drive 4500 Series represents a consistency with our enterprise strategy as we continue to refine and introduce new products across key interfaces like PCIe using the latest NAND flash process geometry and architectural changes that enable a more efficient design, said Daryl Lang, SVP of Product Management for OCZ Storage Solutions. By integrating our new WXL Software into the Z-Drive 4500 platform, we are delivering a complete acceleration, caching and flash management solution to the enterprise PCIe storage market with advanced capabilities and a robust architecture as well.

For flash-based virtualization, the Z-Drive 4500 Series works in conjunction with OCZs VXL Virtualization Software distributing flash cache resources on-demand across virtual machines (VMs) to accelerate application performance. It distributes the flash between VMs based on need making sure that no VM inefficiently occupies flash when it could be better used elsewhere in the environment. As a result, the Z-Drive 4500s flash cache is optimally utilized at all times regardless of how many VMs are running concurrently, data traffic to and from the SAN is reduced, and critical data is locally available in the Z-Drive 4500 card for immediate use by VMs.

With a priority on data reliability and enterprise endurance, the Z-Drive 4500 Series features an advanced suite of tools and capabilities required by todays data center managers including:

  • Power loss data protection that protects in-flight write operations in the event of a sudden power failure
  • End-to-end data path protection that performs data integrity checks at every data juncture ensuring that corrupted data is detected and not propagated
  • 128-bit AES encryption that complies with industry standard data security
  • TRIM Command support that enables data pages to be overwritten and re-used
  • Temperature sensing and thermal throttling for maintaining consistent operating conditions so drives can continue to function through adverse temperature variances
  • New SSD casings for providing a more stable and thermally efficient environment
  • A complete rebuild of the Linux and Windows kernel device drivers from the Z-Drive R4 platform and optimized to improve SSD performance and stability
  • Ease of deployment as installation drivers are packaged with RedHat Package Manager (RPM) and Debian (DEB) package files to automate the installation process


The new Z-Drive 4500 PCIe edge cards advance the Z-Drive Series feature-set by supporting higher performance and a more robust architecture that delivers OCZs most advanced PCIe SSD Series to date. Designed in a Full-Height/Half-Length (FHHL) format the available MLC models include 800GB capacity (Model ZD4RPFC8MT300-0800), 1.6TB capacity (Model ZD4RPFC8MT310-1600), and 3.2TB capacity (Model ZD4RPFC8MT320-3200). All drives come backed with a 5 year warranty and more information about the new Z-Drive 4500 SSD Series is available at www.ocz.com/enterprise.
