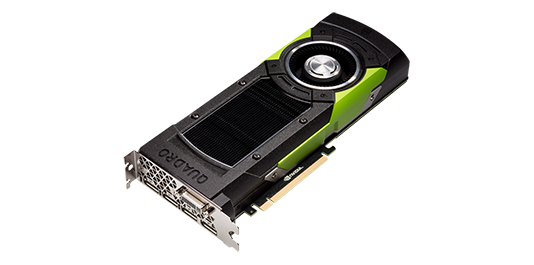

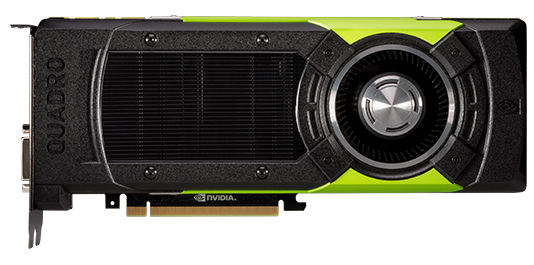

NVIDIA Quadro M6000 Graphics Card Officially Released

By Nathan Kirsch

NVIDIA has officially introduced the Quadro M6000 – the worlds most powerful workstation graphics! We brought you coverage of the Quadro M6000 from GTC 2015 as PNY was showing off a single M6000 and NVIDIA was showing off 8 of them in the latest iRAY VCA, but it appears the card wasn’t officially announced yet. The specifications that we were told on the show floor appear mostly correct as the card does have all the CUDA cores enabled like the GeForce GTX Titan X!

The NVIDIA Quadro M6000 uses the NVIDIA GM200 Maxwell GPU that has 3072 CUDA cores along with 12GB of GDDR5 GPU memory to ensure you can create and render large, complex models and compute massive datasets. Plus, theres the all-new display engine that drives up to four 4K-resolution displays natively with DisplayPort 1.2 support for ultra-high resolutions like 4096 x 2160 @ 60 Hz with 30-bit color. You can also synchronize multiple displays across systems with the Quadro Sync board and accelerate data transfer with external I/O boards through GPUDirect for Video and dual-copy engines.

NVIDIA Quadro M6000 Specifications

  • GPU Memory: 12 GB GDDR5
  • Memory Interface:384-bit
  • Memory Bandwidth: 317 GB/s
  • NVIDIA CUDA Cores: 3072
  • System Interface:PCI Express 3.0 x16
  • Max Power Consumption: 250 W
  • Thermal Solution: Ultra-Quiet Active Fansink
  • Form Factor: 4.4 H 10.5 L, Dual Slot, Full Height

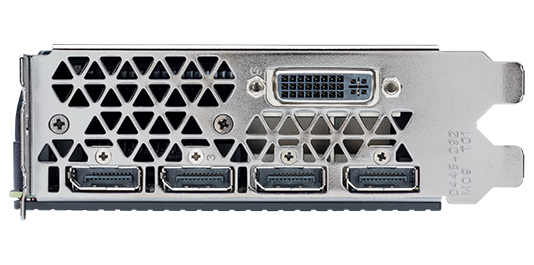

  • Display Connectors: 4x DP 1.2 + DVI-I DL
  • Max Simultaneous Displays: 4 direct, 4 DP 1.2 Multi-Stream
  • Max DP 1.2 Resolution:4096 2160 at 60 Hz
  • Max DVI-I DL Resolution: 2560 1600 at 60 Hz
  • Max DVI-I SL Resolution: 1920 1200 at 60 Hz
  • Max VGA Resolution: 2048 1536 at 85 Hz
  • Graphics APIs: Shader Model 5.0,OpenGL 4.5, DirectX 12.0
