Call of Duty: Black Ops Benchmarks – GeForce GTX 460 vs Radeon HD 6870

Jump To:


The Test System

All testing was done on a fresh install of Windows 7 Ultimate 64-bit with all the latest updates installed. All benchmarks were completed on the desktop with no other software programs running. The Kingston HyperX T1 DDR3 memory modules were run in triple-channel mode at 1866MHz with 8-8-8-24 1T timings. The ATI Radeon HD 6870 was tested using CATALYST 10.10d drivers and the NVIDIA GeForce GTX 460 1GB used Forceware 262.99 WHQL drivers. The ASUS P6X58D-E motherboard was run using BIOS 0303 with the processor running stock settings and Turbo enabled.

Windows 7 Drivers Used:
Intel Chipset Inf Update Program V9.1.1.1025
Realtek Audio Driver V6.0.1.6037 for Windows 64bit Windows 7.(WHQL)
Marvell Yukon Gigabit Ethernet Driver V11.10.5.3 for 32/64bit Windows 7.(WHQL)
Marvell 9128 SATA 6Gbps Controller Driver V1.0.0.1036 for 32/64bit Windows 7.

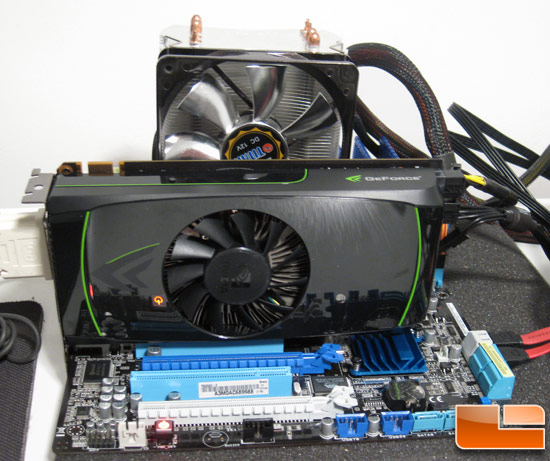

The Video Card Test System

Here is the Intel LGA 1366 Test platform:

Intel Test Platform



Component



Brand/Model



Live Pricing



 Processor

Intel Core i7-970



 Motherboard

ASUS P6X58D-E



Memory

6GB Kingston DDR3 1866MHz



 Video Card



 See Below



 Hard Drive



 Crucial C300 256GB SSD



 Cooling



 Titan Finrar



 Power Supply

Corsair HX850W



 Chassis



 None (Open Bench)



 Operating System



 Windows 7 Ultimate 64-Bit

Video Cards Tested:

  • AMD Radeon HD 6870 – 900MHz Core & 1050MHz Memory
  • NVIDIA GeForce GTX 460 1GB – 675MHz Core / 1350MHz Shader / 900MHz Memory

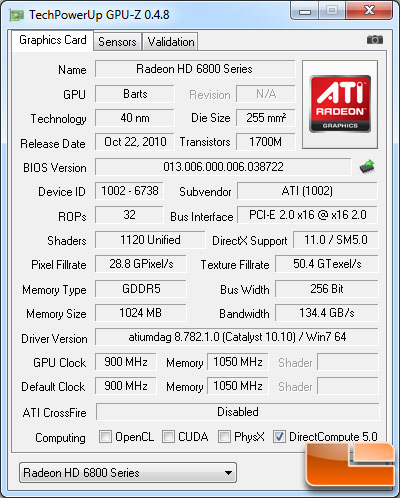

AMD Radeon HD 6870 1GB Video Card GPU-Z 0.4.8 Details:

NVIDIA GeForce GTX 580 Video Card GPU-Z 0.4.8 Details

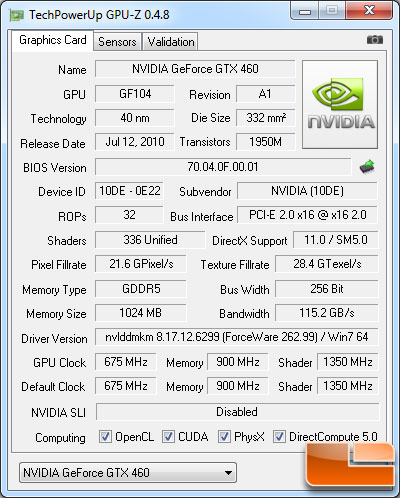

NVIDIA GeForce GTX 460 1GB Video Card GPU-Z 0.4.8 Details:



NVIDIA GeForce GTX 580 Video Card GPU-Z 0.4.8 Details
