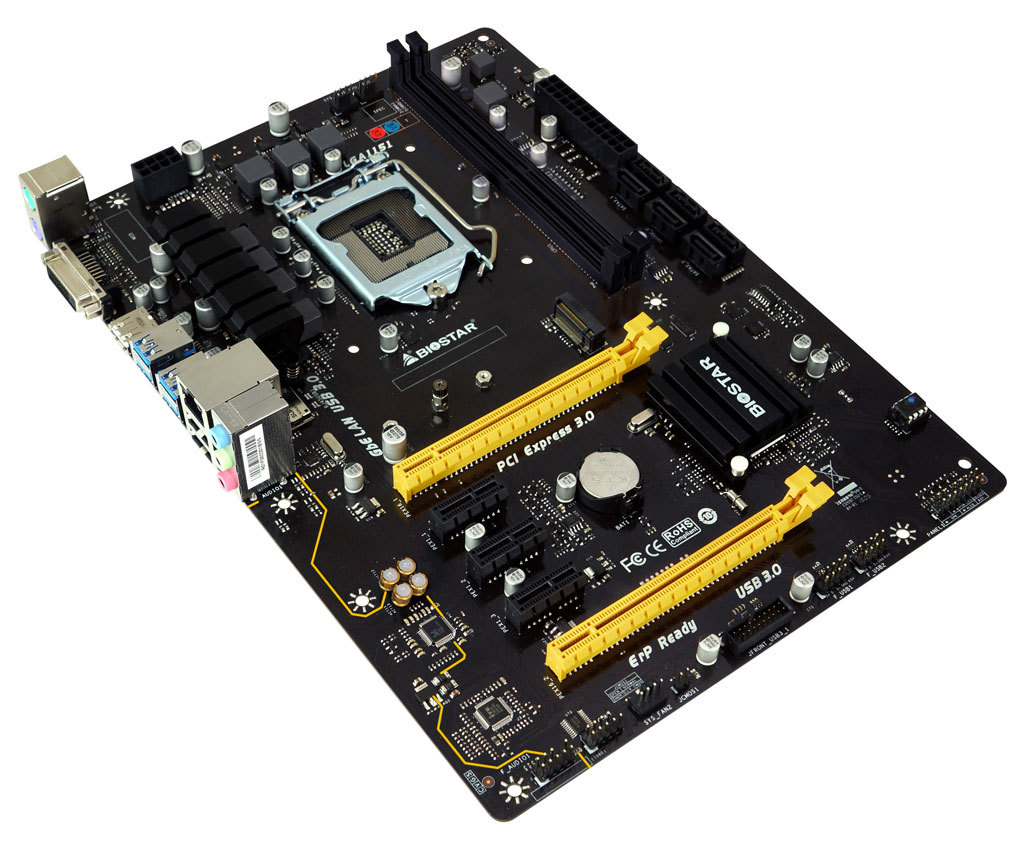

BIOSTAR TB150 PRO Motherboard Designed for Professional Mining
BIOSTAR TB150 PRO Motherboard Designed for Professional Mining
BIOSTAR PRO series motherboard for mining featuring enhanced stability and durability
August 30th, 2016 Taipei, Taiwan BIOSTAR proudly announces its latest product to join the BIOSTAR PRO series of motherboards, the BIOSTAR TB150 PRO designed to be the most stable and durable foundation for cryptocurrency mining. The new BIOSTAR PRO series focuses in these key aspects and adopting it to cryptocurrency mining reduces potential risk in downtime caused by maintenance issues stemming from unstable motherboards due to extended usage. The BIOSTAR TB150 PRO addresses these issues by utilizing BIOSTARs PRO series advantage.
Crypto-currency mining like Bitcoin and other popular cryptocurrency require dedicating a system that can run for long periods of hours under stress which can easily deteriorate motherboard components. With BIOSTAR PRO series motherboard, this deterioration is slowed down and rate is slowed down allowing lesser maintenance cost which gives you the benefit of improved ROI. BIOSTAR achieves this by using its expertise in developing high-endurance and stable components for this application.
The BIOSTAR TB150 PRO supports the latest 6th-generation Intel Core processors and uses the B150 chipset supporting DDR4-2133 and DDR4-1866 memory modules of up to 32GB capacity. The board integrates core features from the BIOSTAR PRO series the Tough Power Enhanced power designed for improved stability and AudioArt capacitors that deliver an incredible listening experience versus same-class motherboards.
As a PRO series motherboard, the BIOSTAR TB150 PRO takes stability to the next level with numerous techonologies to reduce the risk of wear and tear on the motherboard especially in cryptocurrency mining and other high-stress workloads.
BIOSTAR PRO Tough Power Enhanced feature gives the BIOSTAR TB150 Pro superb stability, enduring high-current. In mining, this easily enhances the reliability of the motherboard in prolonged use with little maintenance. Reducing cost to maintain, helping to improve ROI.
For general usage, the Audio Art capacitors enhances the sound quality of the BIOSTAR TB150 PRO, making it a great multi-purpose machine for both work and entertainment.
Specification
Chipset Intel B150 CPU SUPPORT Intel Core i7 LGA 1151 Processor
Intel Core i5 LGA 1151 Processor
Intel Core i3 LGA 1151 Processor
Intel Pentium LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 91WattMEMORY Support Dual Channel DDR4 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB MemoryEXPANSION SLOT 2 x PCI-E x16 3.0 Slot(x16 + x4)
3 x PCI-E x1 3.0 SlotSTORAGE 6 x SATA3 Connector
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage(shared IO w/ PCI-E x16_2)USB 4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 HeaderLAN Realtek RTL8111H – 10/100/1000 Controller INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCPCODEC Realtek ALC887 8-Channel HD Audio REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.0 Port
1 x USB 2.0 Port(only 5V power, up to 1.45A)
2 x USB 2.0 Port
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio ConnectorINTERNAL I/O 1 x USB 3.0 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage(shared IO w/ PCI-E x16_2)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
2 x System Fan Header
1 x Serial HeaderH/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage MonitoringDIMENSION ATX Form Factor Dimension: 29.5cm x 21cm ( W x L ) ABOUT BIOSTAR
