Sapphire Pure Black X58 Motherboard Review

Jump To:


Sapphire Pure Black X58 System BIOS

Sapphire Pure Black X58 Motherboard System BIOS

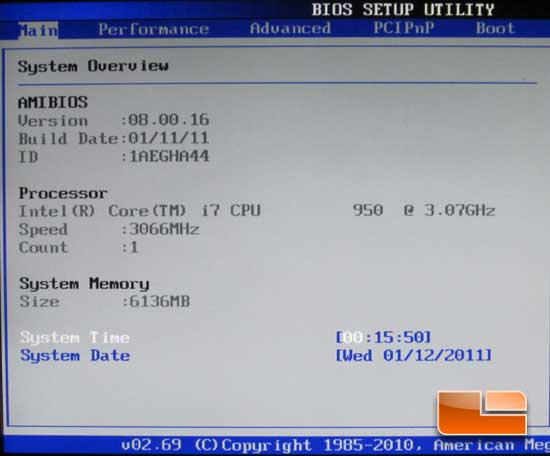

Like many of the system BIOS we have seen before, the Main tab of the Sapphire Pure Black X58 motherboard BIOS gives you the Basic information about your system. In this case we can see that we are running BIOS version 08.00.16 which is dated 01/11/11, and the CPU that we are using is the Intel Core i7 950 and our total of 6GB of memory. The only changes that we can make are the system date and time.

Sapphire Pure Black X58 Motherboard System BIOS

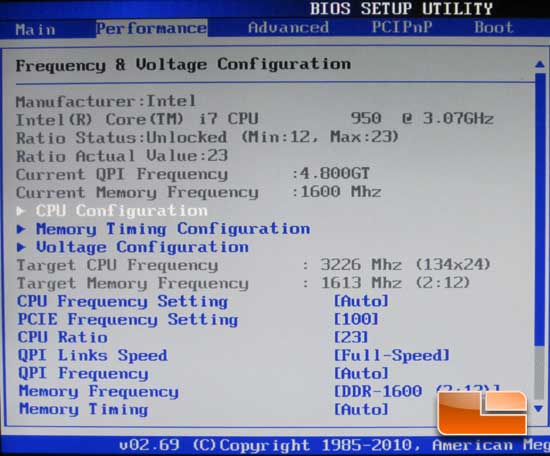

The second tab of the Sapphire Pure Black X58 system BIOS is the performance page. On this tab we can access the CPU Configuration, Memory Timing Configuration, and Voltage Configuration sub-pages. We also gain access to the Frequency settings of the CPU, PCIe, QPI, and Memory. If we were to scroll down the Performance page we would see the CPU Uncore Frequency and the profile pages for the BIOS.

Sapphire Pure Black X58 Motherboard System BIOS

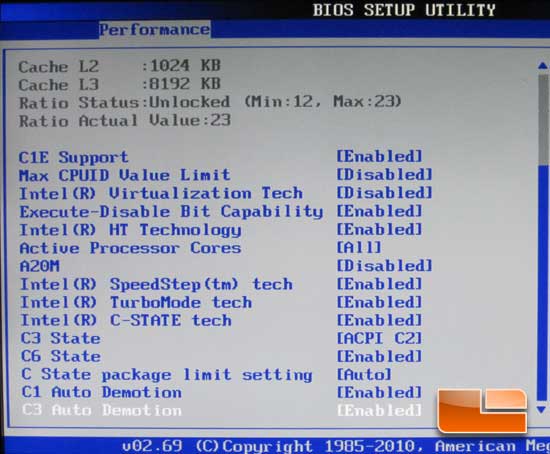

The CPU configuration sub-page gives us access to the various features of the Intel Core i7 950, and the ability to disable the ones we won’t be using.

Sapphire Pure Black X58 Motherboard System BIOS

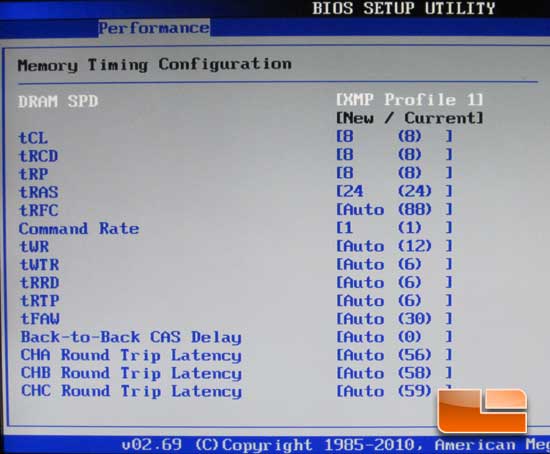

The Memory Timing configuration sub-page allows us to set our Corsair Dominator memory manually or we can choose to set it to the XMP Profile.

Sapphire Pure Black X58 Motherboard System BIOS

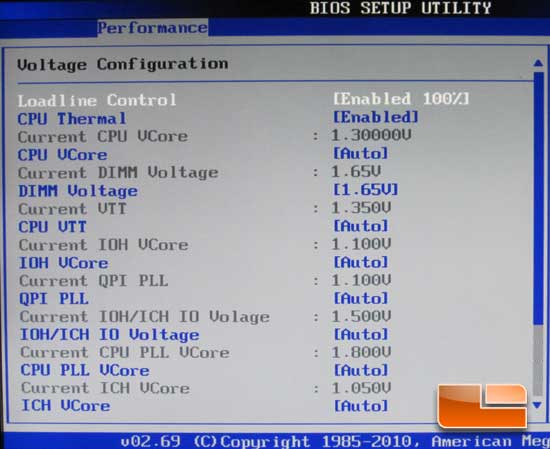

The Voltage Configuration sub-page is exactly that. Here we can set the various system voltages of the Sapphire Pure Black X58 motherboard

Sapphire Pure Black X58 Motherboard System BIOS

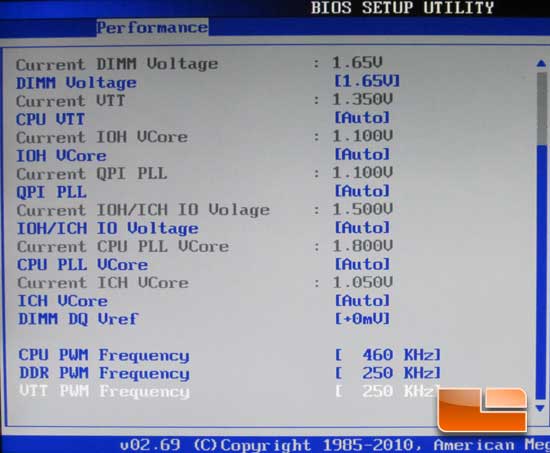

This is the lower section of the Voltage Configuration sub-page; here we can manually set the CPU PWM Frequency, DDR PWM Frequency, and the VTT PWM Frequency.

Sapphire Pure Black X58 Motherboard System BIOS

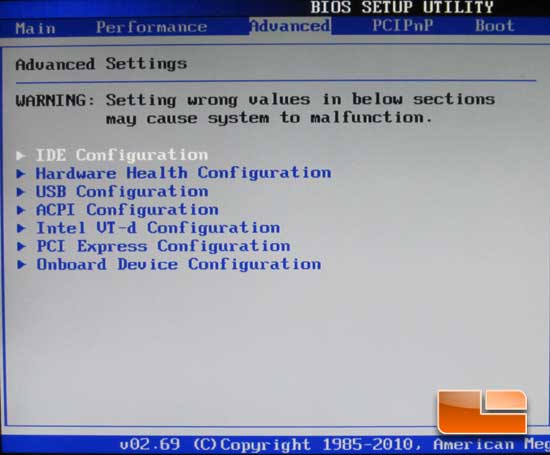

The Advanced tab of the Sapphire Pure Black X58 motherboard BIOS gives us access the IDE Configuration, Hardware Health Configuration, USB Configuration, ACPI Configuration, Intel VT-d Configuration, PCI Express Configuration and the Onboard Device Configuration.

Sapphire Pure Black X58 Motherboard System BIOS

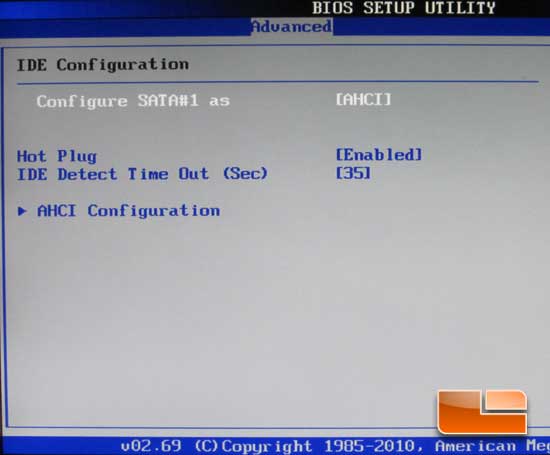

The IDE Configuration page allows us to set the SATA Ports to IDE, RAID, or AHCI. For our testing purposes we will be running our Kingston 96GB SSDNow in AHCI mode.

Sapphire Pure Black X58 Motherboard System BIOS

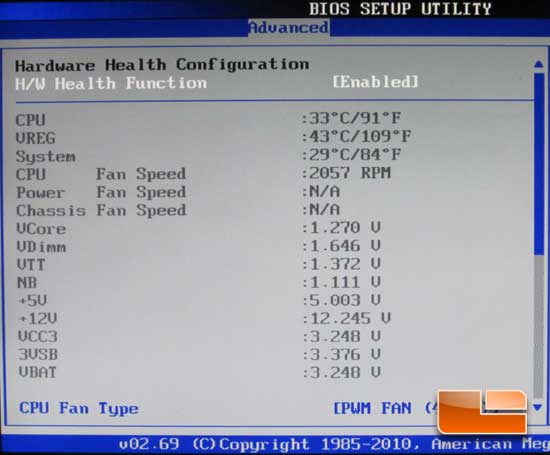

Checking out the Hardware Health Configuration of the Sapphire Pure Black X58 motherboard BIOS we can see the various temperatures, Fan speeds and Voltages currently in use.

Sapphire Pure Black X58 Motherboard System BIOS

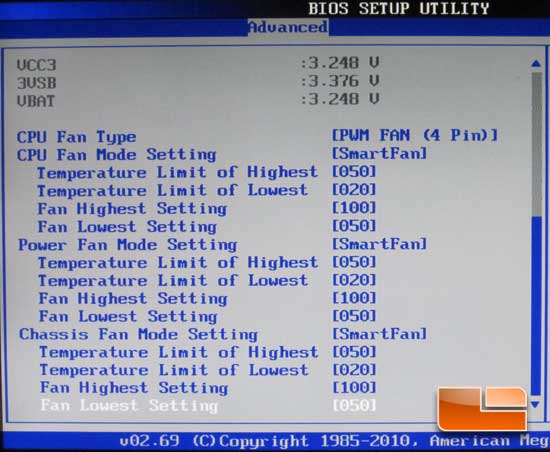

Scrolling down on the Hardware Health Configuration page we can configure the fan speeds we want at the various temperatures.

Sapphire Pure Black X58 Motherboard System BIOS

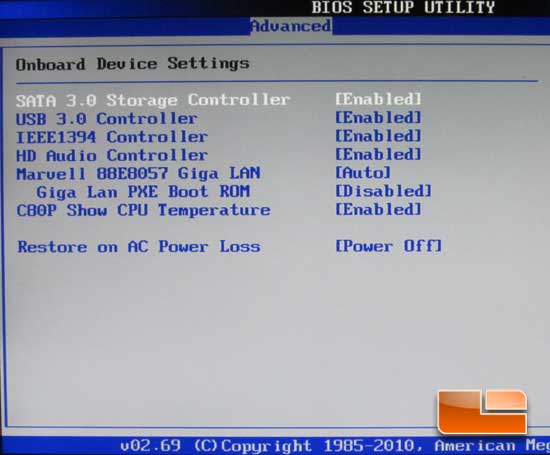

The Onboard Device Settings page allows us to enable or disable the various onboard devices such as the SATA 3.0 Storage Controller, USB 3.0 Controller, HD Audio, and the Marvell 88E8057 Gigabit LAN controller.

Sapphire Pure Black X58 Motherboard System BIOS

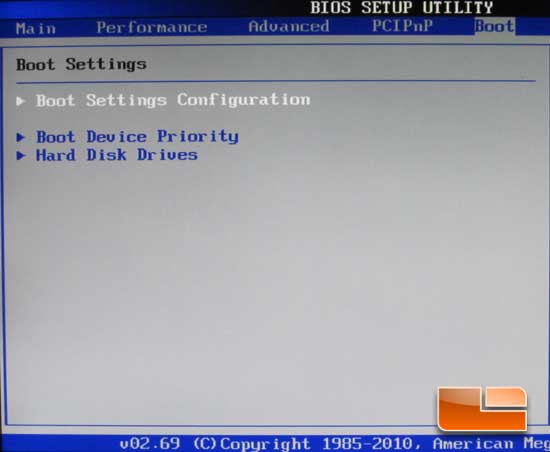

The Boot Settings page gives us access to the various boot devices and configuration.

Sapphire Pure Black X58 Motherboard System BIOS

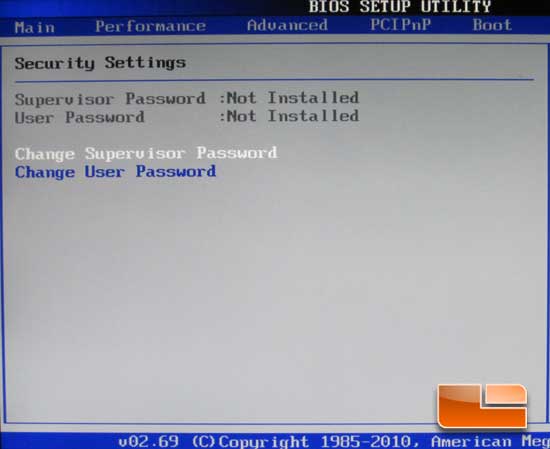

The Security Settings page allows you to set the Supervisor Password and User Password for the Sapphire Pure Black X58 motherboard.

Sapphire Pure Black X58 Motherboard System BIOS

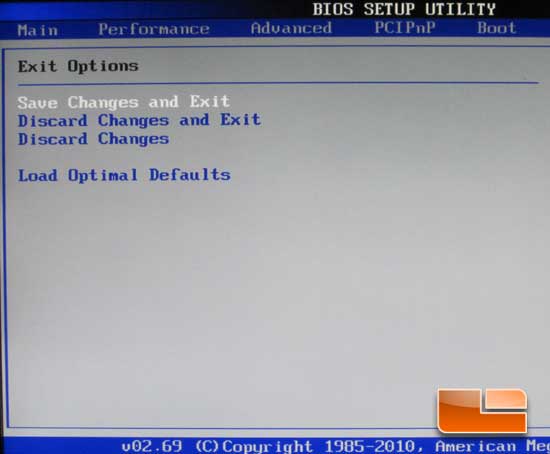

Last but not least is the Exit page. On this particular page we can save changes and exit, discard changes and exit, or simply discard the changes. We can also load the Optimal Defaults on the Sapphire Pure Black X58 motherboard.
