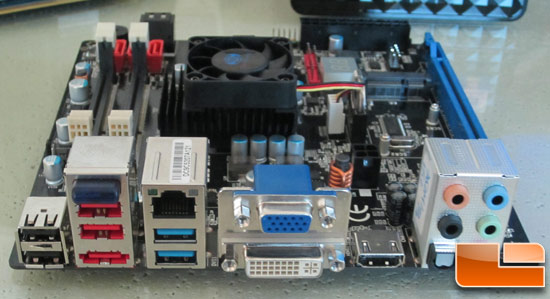

SAPPHIRE Pure White Fusion E350M1W
AMD announced its first mainboard based on the exciting new APU (Accelerated Processing Unit) architecture ans Sapphire also has a mini-ITX motherboard released for this series as well. The SAPPHIRE Pure White Fusion E350M1W mainboard features the E350 (Zacate) APU from AMD.
Zacate is the first generation of APU – a combination of CPU and GPU computing technologies onto a single die to improve the performance of both visual and data-intensive tasks. For the first time it combines high-performance serial computing and parallel graphics processing cores on a single chip. The SAPPHIRE Pure White Fusion E350M1W also uses the companion Hudson-M1 (A50M) Chip from AMD.
The graphics engine of the SAPPHIRE Pure White Fusion E350M1W delivers a full DX 11 feature set over a choice of three display outputs of which any pair can be used concurrently. Maximum resolution is 2560 x 1600 over the D-Sub, and 1920 x 1080 over HDMI or the DVI-D output. Up to 4GB of system memory can be installed, using industry standard 1.5v DDR3 (1066/800) un-buffered SO-DIMMs. Hard drive and optical drive support is provided by five SATA III ports with 6Gb/s transfer rates, and there is an additional eSATA connector on the rear panel with 3Gb/s transfer rate for external drive access.
Extensive I/O connections include eight USB 2.0 ports ports supporting transfer speeds of up to 480Mbps (four on the rear panel plus four by onboard header), plus two USB 3.0 ports on the rear panel (backward compatible with USB 2.0), supporting transfer speeds up to 4.8Gbps. One Gigabit Ethernet connection is provided by a Marvell 88E8057 Gigabit controller, and Bluetooth support by an Atheros AR3011 all-CMOS, single chip solution compatible with Bluetooth 2.1 + EDR. The on-board Audio support includes 8-channel High-Definition audio and optical S/PDIF output. In addition to all the on-board features, the SAPPHIRE Pure White Fusion E350M1W has two expansion slots. It has one PCI-Express 2.0 x16 connector with x4 bandwidth, designed for use with an expansion VGA card, and one general purpose Mini PCI-Express 2.0 x1 connector.
Sapphire also had a Radeon HD 5570 Xtend TV Graphics Card with TV Tuner on display in their hotel suite. Sapphire is trying their best to keep the ATI All-in-Wonder series alive home PCs and HTPC users. The card is a full-height DirectX 11 compliant Radeon HD 5570 which integrates a standard-definition TV tuner. The tuner can scan for, and store channels, you can also program the software to record them at a set time. As a graphics card, it packs 320 stream processors and 512 MB/1 GB of GDDR3 memory over a 128-bit memory interface.
You can see that the card has HDMI and DVI outputs that is ideal for HTPC users wanting to run HD content and connect to full HDTVs. The card also has an external antenna and a mini USB port on the back.
