Prolimatech Panther CPU Cooler Review

Jump To:


Installing The Prolimatech Panther

Prolimatech Panther CPU Cooler Backplate

Since I’ll be using this on an Intel Sandy Bridge test system, I’m using the LGA 1155/1156 backplate. Notice that it has a cutout for the screw on the base of the socket to ensure it sits flush on the board. This ensures you install the backplate correctly as there is only one way it will fit properly.

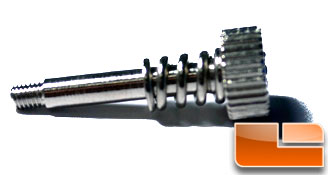

Prolimatech Panther Thumbscrew

The Panther is held down using thumb screws, which is pretty convenient. They also have a Phillips head on them, so you can use a screw driver if you would prefer.

Prolimatech Panther LGA1155 Mount

The mounting arms are simple to install; they are held on with two screws per arm that attach to the HSF base. Now you are ready to apply your thermal paste and then mount the Prolimatech Panther!

Prolimatech Panther LGA1155 Mounted

Getting the heatsink mounted was no issue at all. Make sure when you’re tightening the thumbscrews down that you’re not going in a circular pattern. Alternate sides if possible to ensure you’re getting the best mount possible.

Prolimatech Panther Memory Clearance

As you can see, the design of the Panther ensures you shouldn’t have any issues with RAM clearance. The cooler is pretty thin when it comes to the width, so there should be plenty of space between your DIMM slots and fan. This is a huge plus, as my Corsair Vengeance memory modules have rather large heat spreaders.
