Noctua NH-L12 Low Profile CPU Cooler ReviewMon, May 07, 2012 - 12:00 AM
NH-L12 CPU cooler
Noctua came on the scene in 2008 and quickly made a name for themselves with their solid performing coolers that were pretty well silent. The first cooler we looked at from Noctua was the NH-U12P back in 2008. It was large and aimed at enthusiasts, but it performed very well and did so quietly. It was one of the biggest coolers on the market. Later that year Noctua released the NH-C12P, a short top down cooler. Then in 2010 Noctua brought us the massive NH-D14, but like the NH-U12P it was aimed at overclockers and enthusiasts.

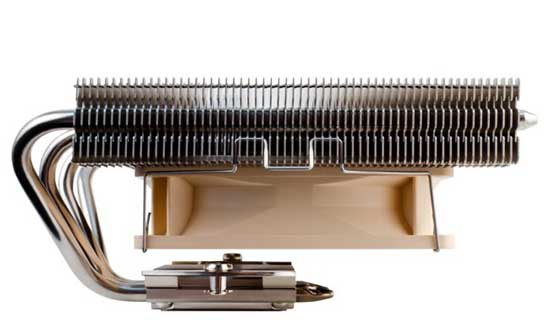

Now Noctua is showing the SFF or Small Form Factor users some love with the NH-L12. The NH-L12 sports two fans, a 120mm NF-F12 and 92mm NF-B9. How low is low? With both the fans installed the NH-L12 stands a very short 93mm or 3.7 inches. With only the lower 92mm fan installed for the “Extra Low” configuration the height comes to only 66mm or 2.5 inches, or about the same height as a stock Intel box cooler.
Unlike any of the coolers that we have looked at from Noctua before, the NH-L12 comes with some uh, caveats, provisos, a couple of quid pro quo. Noctua is not hiding this fact and has an entire page dedicated to talking about the suggested CPU TDP restrictions for the NH-L12, as well as ambient room temperature limits for single fan mode. Overclocking is a no go as well. Here is quote from the Noctua product page and link to the TDP guidelines page.
Caution: The NH-L12 is a low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 95W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L12 is recommended for your CPU.
So the NH-L12 is aimed squarely at non-overclocking users with small cases. Let’s take a look at the features and specifications of the NH-L12 before we get too far.
Features of the Noctua NH-L12
- 120/92mm dual fan design: Thanks to its exquisite dual fan setup consisting of Noctua’s highly optimised NF-F12 (120mm) and NF-B9 (92mm) premium fans, the NH-L12 pushes the bar in terms of low-profile quiet cooling performance.
- Extra-low profile in 92mm single-fan mode: The NH-L12 can be used with the NF-B9 92mm fan only in order to reduce the overall height to 66mm. This way, the cooler is suitable for many typical mATX or Mini-ITX enclosures and ideal for whisper-quiet HTPC systems.
- PWM support and Low-Noise Adaptors: The NH-L12’s NF-F12 and NF-B9 fans support PWM for convenient automatic speed control. In addition, the maximum fan speed can be reduced to 1200/1300rpm using the supplied Low-Noise Adaptors for even quieter operation.
- SecuFirm2 mounting system: Noctua’s enthusiast grade SecuFirm2 multi-socket mounting provides broad socket compatibility (LGA 2011, LGA1366, LGA1156, LGA1155, LGA775, AM2, AM2+, AM3, AM3+, FM1) and meets the highest demands in safety, performance and ease-of-use.
- Mini-ITX mounting without backplate: Some Intel based Mini-ITX mainboards don’t allow for the installation of backplates. The NH-L12 thus comes with an extra set of Intel mounting bolts which make it possible to install the cooler without using the SecuFirm2 backplate.
- NT-H1 thermal compound: Noctua’s much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.
Specifications for the Noctua NH-L12
- Socket compatibility:
- Intel LGA2011, LGA1366, LGA1156, LGA1155, LGA775
- AMD AM2, AM2+, AM3, AM3+, FM1 (backplate required)
- 1x NF-F12 PWM premium fan
- 1x NF-B9 PWM premium fan
- 2x Low-Noise Adaptor (L.N.A.)
- Y-Split Cable
- NT-H1 high-grade thermal compound
- SecuFirm2 Mounting Kit
- Mini-ITX Mounting-Kit
- Noctua Metal Case-Badge
- Model: Noctua NF-F12 PWM & Noctua NF-B9 PWM
- Bearing: SSO-Bearing
- Max. Rotational Speed (+/- 10%): 1500 / 1600 RPM
- Max. Rotational Speed with L.N.A. (+/- 10%): 1200 / 1300 RPM
- Min. Rotational Speed (PWM): 300 / 300 RPM
- Max. Airflow: 93,4 / 64,3 m3/h
- Max. Airflow with L.N.A.: 74.3 / 52.6 m3/h
- Max. Acoustical Noise: 22.4 / 17.6 dB(A)
- Max. Acoustical Noise with L.N.A.: 18.6 / 13.1 dB(A)
- Input Power: 0.6 / 0.96 W
- Voltage Range: 12 V
- MTBF: > 150.000 h
