MyDigitalSSD BPX M.2 NVMe 480GB SSD Review

Jump To:

AS SSD Benchmark

AS-SSD (1.9.5986.35387) Benchmark:

We have been running the AS-SSD Benchmark app for over some time now and found that it gives a broad result set. The programmer has worked very hard on this software and continues to make updates often so if you use it, show him some love and send him a donation. There are now three tests that are found within the tool and we’ll show the results from all three of them.

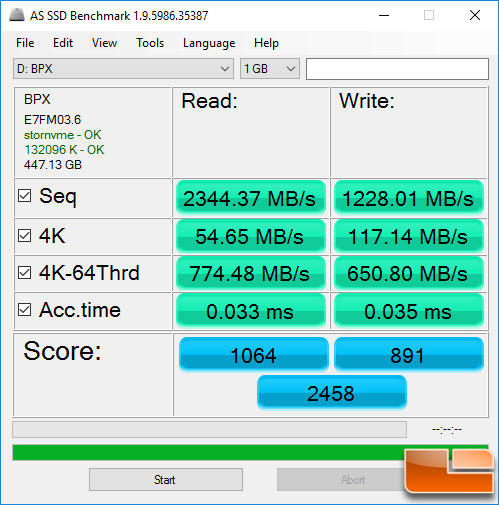

AS SSD – MyDigitalSSD BPX M.2 480GB:

Benchmark Results: AS SSD showed the MyDigitalSSD BPX M.2 480GB drive had an overall score of 2,458 points with sequential read speeds of 2,344 MB/s and 1,228 MB/s write.

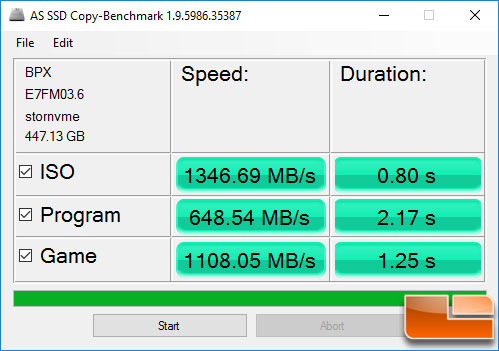

AS SSD  Copy – MyDigitalSSD BPX M.2 480GB:

Benchmark Results: The copy benchmark test results are pretty impressive with speeds ranging from 648 MB/s to 1,108 MB/s.

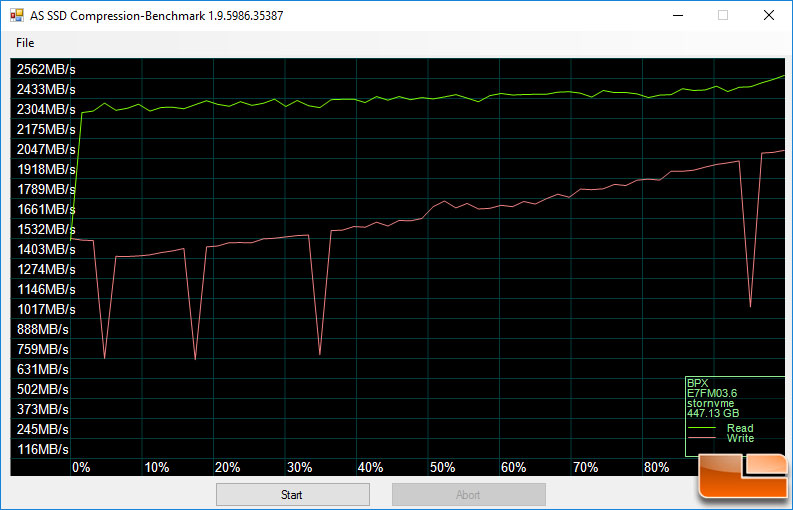

AS SSD  Compression – MyDigitalSSD BPX M.2 480GB:

Benchmark Results: For this benchmark chart you would ideally want to see a straight line as you don’t want any compression performance loss as the test goes from 0% compressible to 100% compressible data during the benchmark test period. The MyDigitalSSD BPX 480GB drive had a number of performance dips on write operations and you can see, both read and write performance does does increase as the compression percentage increases. This is similar to other drives using the Phison controller with MLC NAND Flash, so nothing out of the ordinary here!
