Setting Up Vista Ultimate on a RAID Array

Recently, many of the users on the LR Forums want to install their first RAID array while others want to know more about Microsoft Windows Vista. I thought I could knock out two birds with one stone as I just happen to be upgrading my personal system with some new hard drives in RAID 0 and a fresh installation of Windows Vista Ultimate 32-bit. So, read on to see how to set up and install Windows Vista Ultimate on an Intel Core 2 Duo system using RAID 0.

How To Install Windows Vista Ultimate - Hard Drives

My personal system consisted of a pair of 250GB SATA Western Digital hard drives that have done me well over the past two years, but at just 7200 RPM’s they left more to be desired when it comes to speed. With the Western Digital Raptor WD1500ADFD drives coming down in price (below $200 after rebate) I ordered myself a pair as these faster 10,000RPM hard drives. Since I am installing Vista on these drives, I simply removed my old drives and installed these new drives in my system.

How To Install Windows Vista Ultimate - BIOS Settings

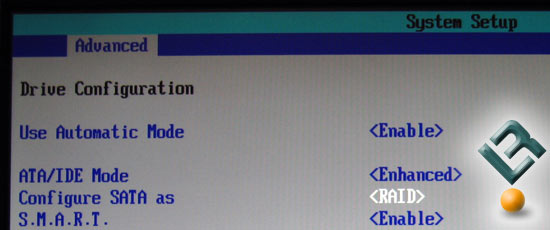

For those that have never made a RAID Array, the first thing you have to do is set up the motherboard BIOS for RAID. I have the Intel D975XBX ‘Bad Axe’ motherboard in my system so when I powered the system on, I hit ‘F2′ on the keyboard and entered the BIOS.  I then navigated over to the System Setup menu and entered the ‘Advanced’ section.  The third option down shows a setting that is called ‘Configure SATA as’ which needs to be set to RAID if you are setting up Vista on a RAID Array.  If you aren’t, leave it alone as it should show ‘IDE’.  Once the setting you need has been selected, be sure to save and exit the BIOS.

How To Install Windows Vista Ultimate - Matrix RAID Settings

Once your computer restarts you need to enter the Intel Matrix Storage Manager by pressing ‘ctrl + I’ as the RAID Array needs to be created. I wanted to get the highest level of performance from my system, so I selected a RAID0 (Stripe) level for my drives.  I left the strip size at 128KB, which is default for RAID 0. Once the RAID Array is created, exit the Intel Matrix Storage Manager and you can start the Windows Vista Ultimate 32-bit installation now that the RAID Array has been built.
