GIGABYTE P67A-UD7-B3 Motherboard ReviewMon, May 30, 2011 - 12:00 AM
Network Throughput Testing
The Gigabit PCIe Ethernet controllers vary on each board, so it will be interesting to see what the performance is on all the boards. Each of the boards uses a different Gigabit Controller. Let’s take a look at what controller is on each of the boards.
- GIGABYTE P67A-UD7 – Realtek 8111E Gigabit LAN Controller
- Intel DX58S02 X58 – Intel 82574L Gigabyte Ethernet Controller
- GIGABYTE G1 Assassin X58 – Bigfoot Networks Killer E2100 Game Networking Platform
- Sapphire Pure Black X58 – Marvell 88E8057 PCI-Express Gigabit LAN
- BIOSTAR TP67XE – Realtek 8111E Gigabit LAN Controller
- GIGABYTE P67A-UD4 – Realtek 8111E Gigabit LAN Controller
- ECS P67H2-A Extreme Black – Realtek 8111E Gigabit LAN Controller
- MSI P67A-GD65 – Realtek 8111E Gigabit LAN Controller
- ASUS P8P67 Deluxe – Intel 82579 Gigabit LAN Controller
- ASUS P8P67 – Realtek 8111E Gigabit LAN Controller
- ECS P55H-AK – Realtek 8111E Gigabit LAN Controller
To test the Gigabit PCIe Ethernet controllers we used the NTttcp tool to test Ethernet Throughput and the CPU utilization of the various Ethernet controllers used on the AMD Motherboards. To do this properly we set up one machine as the server: in this test an Intel Core i7 970 system with an MSI Big Bang XPower motherboard acted as our Gigabit LAN server.
On the server side, we used the following Command Line for Gigabit PCIe Ethernet Testing:
Ntttcpr -m 4,0,<Client IP> -a 4 -l 256000 -n 30000
On the client side (the motherboard being tested), we used the following Command Line:
Ntttcps -m 4,0,<Server IP> -a 4 -l 256000 -n 30000
At the conclusion of each test we recorded the throughput and CPU utilization figures from the client screen as that is the system being tested.

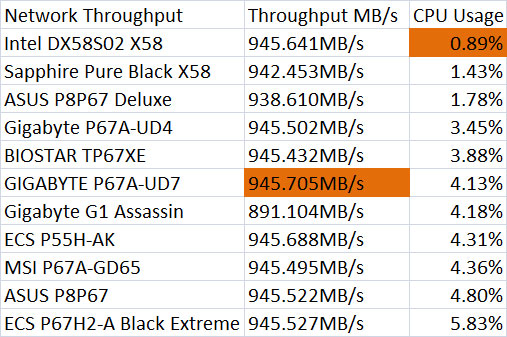

Benchmark Results: The GIGABYTE P67A-UD7-B3 took the honors of the top spot for network throughput with a total throughput of 945.705MB/s. CPU usage of the Realtek 8111E Gigabit Ethernet controller on the P67A-UD7-B3 is right in-line with the others that we have seen at 4.13%.
