Gigabyte A-MA770T-UD3P Motherboard Review

I have actually always liked the box that Gigabyte puts out.  It highlights features, is simple to read, and is not too crowded with its design.  They also make it very obvious that their warranty is three years in the USA and Canada.  That is a pretty stinkin’ good warranty!  The board is a part of their Ultra Durable as well, which boasts superior components used to produce the board.

Gigabyte A-MA770T-UD3P Motherboard Review

The bundle is super thin on this board.  You get two SATA cables, an IDE cable, your owner’s guides, the driver and app cd, the backplate, and the all important sticker.

Gigabyte A-MA770T-UD3P Motherboard Review

The Main page of the AWARD BIOS.

Gigabyte A-MA770T-UD3P Motherboard Review

This is the main page you get once you press the control F1 key combination.  Oh Gigabyte, please stop this!

Gigabyte A-MA770T-UD3P Motherboard Review

The MIT page.  This is where most of the tweaks are found.  Let’s take a closer look at all of the settings available…

Gigabyte A-MA770T-UD3P Motherboard Review

ACC settings…

Gigabyte A-MA770T-UD3P Motherboard Review

FSB goes to 500… a little overkill maybe?!?

Gigabyte A-MA770T-UD3P Motherboard Review

CPU multiplier goes to 35x…

Gigabyte A-MA770T-UD3P Motherboard Review

Northbridge frequency multipliers…

Gigabyte A-MA770T-UD3P Motherboard Review

HT Link Width…

Gigabyte A-MA770T-UD3P Motherboard Review

HT Link Frequency…

Gigabyte A-MA770T-UD3P Motherboard Review

Memory Clock dividers… basically, they are 800, 1066, 1333 and 1600 DDR3 speeds.

Gigabyte A-MA770T-UD3P Motherboard Review

DCT mode.

Gigabyte A-MA770T-UD3P Motherboard Review

DRAM configuration.

Gigabyte A-MA770T-UD3P Motherboard Review

Vcore can be adjusted to .6v higher than default.

Gigabyte A-MA770T-UD3P Motherboard Review

Vdimm goes up to 2.5v.

Gigabyte A-MA770T-UD3P Motherboard Review

DDR VTT goes to 1.2v.

Gigabyte A-MA770T-UD3P Motherboard Review

NB voltage all the way to 1.8v

Gigabyte A-MA770T-UD3P Motherboard Review

CPU NB Vid control.

Gigabyte A-MA770T-UD3P Motherboard Review

NB PCIE voltage control…

Gigabyte A-MA770T-UD3P Motherboard Review

SB/HT voltage control.

Gigabyte A-MA770T-UD3P Motherboard Review

Standard CMOS page.

Gigabyte A-MA770T-UD3P Motherboard Review

Advanced BIOS Features page.

Gigabyte A-MA770T-UD3P Motherboard Review

Advanced Chipset Features page.

Gigabyte A-MA770T-UD3P Motherboard Review

Integrated Peripherals Page.

Gigabyte A-MA770T-UD3P Motherboard Review

Power Management…

Gigabyte A-MA770T-UD3P Motherboard Review

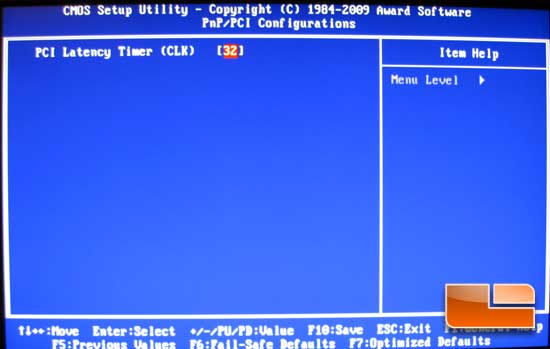

PnP/PCI Configuration…

Gigabyte A-MA770T-UD3P Motherboard Review

The Health page is pretty detailed to help you keep tabs on how your system is doing.

Well, that is all we need to see in the BIOS.  Let’s move on!
