Legit Video Card Reviews
ASUS GeForce ENGTX460 TOP 768MB Video Card Review
| Manufacturer: | ASUS |
| Product: | TOP/2DI/768MD5 |
| Date: | Fri, Jul 23, 2010 - 12:00 AM |
| Written By: | Nathan Kirsch - |
| Share: |
GeForce GTX 460 Test Settings
All testing was done on a fresh install of Windows 7 Ultimate 64-bit
with all the latest updates installed. All benchmarks were completed on
the desktop with no other software programs running. The Corsair
DOMINATOR memory modules were run in triple-channel mode at 1866MHz with
8-8-8-24 timings. The ATI Radeon HD 5000 series cards were all tested
using CATALYST 10.6 drivers and the NVIDIA GeForce cards all used
Forceware 258.80. The ASUS P6T Deluxe V2 motherboard was run using BIOS
1003 with the processor running stock settings and Turbo enabled.
Windows 7 Drivers Used:
Intel Chipset Inf Update Program V9.1.1.1014
SoundMAX 2000B Audio Driver V6.10.2.6585 for Windows 64bit Windows 7.(WHQL)
Marvell Yukon Gigabit Ethernet Driver V11.10.5.3 for 32/64bit Windows 7.(WHQL)
Here is the Intel LGA 1366 Test platform:
| Intel Test Platform | |||||
|---|---|---|---|---|---|
|
Component |
Brand/Model |
Live Pricing |
|||
|
Processor |
Intel Core i7 975 | ||||
|
Motherboard |
ASUS P6T Deluxe V2
|
||||
|
Memory |
6GB Kingston DDR3 1866MHz
|
||||
|
Video Card |
See Below |
||||
|
Hard Drive |
Western Digital VelociRaptor |
||||
|
Cooling |
Titan Finrar |
||||
|
Power Supply |
Corsair HX850W |
||||
|
Chassis |
None (Open Bench) |
||||
|
Operating System |
Windows 7 Ultimate 64-Bit |
||||
Video Cards Tested:
- ASUS ARES 4GB - 850MHz Core / 1200MHz Memory
- ATI Radeon HD 5870 1GB - 850MHz Core / 1200MHz Memory
- ATI Radeon HD 5850 1GB - 700MHz Core / 1000MHz Memory
- ATI Radeon HD 5830 1GB - 800MHz Core / 1000MHz Memory
- NVIDIA GeForce GTX 480 - 700MHz Core/1401MHz Shader/1848MHz Memory
- NVIDIA GeForce GTX 470 - 608MHz Core/1215MHz Shader/1674MHz Memory
- NVIDIA GeForce GTX 465 - 608MHz Core/1215MHz Shader/1608MHz Memory
- ASUS GeForce GTX 460 768MB TOP - 700MHz Core/1400MHz Shader/920MHz Memory
- EVGA GeForce GTX 460 768MB SuperClocked - 763MHz Core/1526MHz Shader/950MHz Memory
- NVIDIA GeForce GTX 460 768MB- 675MHz Core/1350MHz Shader/900MHz Memory
- NVIDIA GeForce GTX 260 Core 216 - 626MHz Core/1350MHz Shader/1053MHz Memory

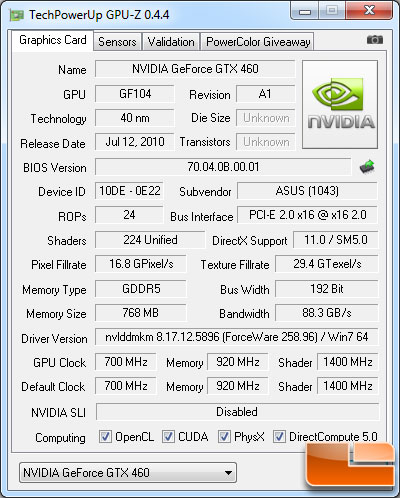

ASUS GeForce GTX 460 768MB Top Edition GPU-Z 0.4.4 SLI Details:
