PNY VERTO GeForce GT 240 Video Card Review
| Manufacturer: | PNY |
| Product: | VCGGT2405G5XPB |
| Date: | Wed, Jan 27, 2010 - 12:00 AM |
| Written By: | Austin Hamann - |
| Share: |
Temperature Testing and Power Consumption
For idle testing, the computer was left running with no applications aside from GPUz open for 10 minutes. For load testing, I fired up Furmark v1.7.0, still with no AA and a resolution of 1440 x 900, which maxed out each card more than any other benchmark/application can.Temperature Testing

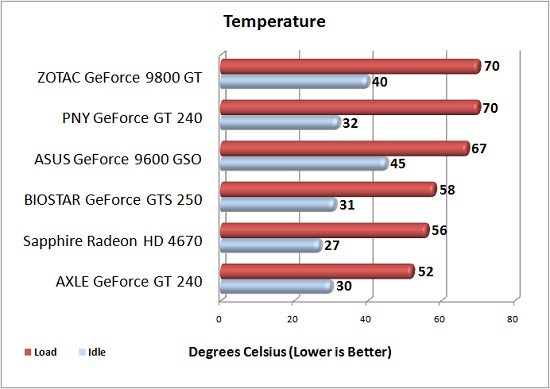

For Temperature testing, all fans were kept at auto in a closed case with no side fan and ambient temperatures of ~75F. The following maximum sustained temperatures were recorded:
Results: Temperatures here are mainly to be expected, with the PNY GT 240 being one of the warmest cards as it uses a reference single slot heatsink as does the ZOTAC 9800 GT. The biggest surprise to me was the temps on the BIOSTAR GTS 250, but it has a nice heatpipe design as well as thermal throttling at idle.

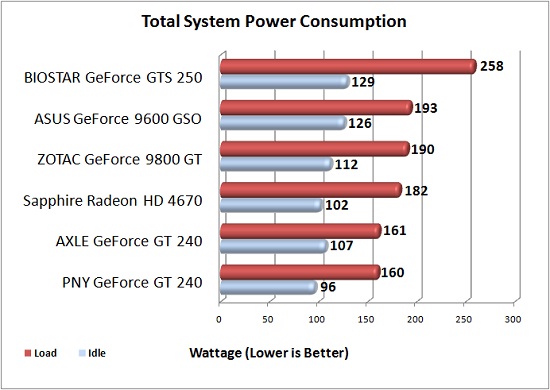

Total System Power Consumption
Results: The PNY VERTO GeForce GT 240 was the first card I have tested to use less than 100W at idle, and also has the lowest load power consumption, which is a clear winner to me, as this card does not require a six-pin power connector so it really does not require much for a power supply to run it.
Next Page - PNY VERTO GT 240 Overclocking
